Understanding how aluminum die casting works is critical for anyone specifying components for automotive, industrial machinery, renewable energy, construction, or agricultural applications in the US market. The choices made during material selection, tooling design, and process control have lasting consequences. This guide breaks down the process steps, alloy considerations, quality risks, and key decision points to help you make informed choices.
Key Takeaways
- Aluminum die casting forces molten aluminum alloy into a reusable steel die, producing repeatable, near-net-shape parts with complex geometries.
- The process generally uses a cold-chamber machine, where the molten alloy is ladled into a separate shot chamber before injection.
- Key stages include die preparation, alloy melting, injection, solidification under pressure, ejection, trimming, and inspection.
- Alloy choice, die design, wall thickness, and production volume are major factors that influence the final part's performance and cost.
- While ideal for medium- to high-volume production, die casting may not be the best fit for low-volume or specialized parts, which might be better suited to machining or sand casting.
What Is Aluminum Die Casting and Why Is It Used?
Aluminum die casting is a manufacturing method for producing metal parts by forcing molten aluminum into a mold, or "die," under extreme pressure. This die is a hardened steel tool machined to contain the negative geometry of the desired component. After the aluminum solidifies, the die is opened, and the part is ejected.
The goal is to create lightweight, dimensionally consistent, and often complex components with a smooth surface finish. Because the parts are "near-net-shape," they require significantly less machining and generate less material waste compared to carving the entire part from a solid block of aluminum.
While all die-cast aluminum is a form of cast aluminum, the reverse isn't true. The broader "cast aluminum" category also includes processes like sand casting and permanent-mold casting, which do not use the same high-pressure injection into a steel die. The high-pressure process is dominant, with research showing that nearly two-thirds of all aluminum castings made in North America are produced using high-pressure die casting (HPDC).
Aluminum suits this process because of these properties:
- Low density and high strength-to-weight ratio
- Excellent thermal and electrical conductivity
- Inherent corrosion resistance
- Ability to form complex and intricate shapes
- High recyclability
The primary economic driver for die casting is volume. The initial tooling cost for a hardened steel die is substantial, but for high-volume production runs, that cost is distributed across thousands or even millions of parts, making the per-part cost very competitive.
Why Manufacturers Use It
Teams select aluminum die casting to meet specific application requirements, including:
- Lightweight automotive housings
- Multiple functional features integrated into one component
- Efficient heat sinks
- High repeatability for parts that need tight dimensional control
Those benefits only hold when the process is tightly controlled. Without that control, common problems include:
- Inconsistent dimensions that affect assembly
- Excessive porosity (small internal voids) that compromises strength or pressure tightness
- Incomplete die filling, resulting in missing features
- Flash (excess material) that requires extra labor to remove
- Distortion or poor surface quality

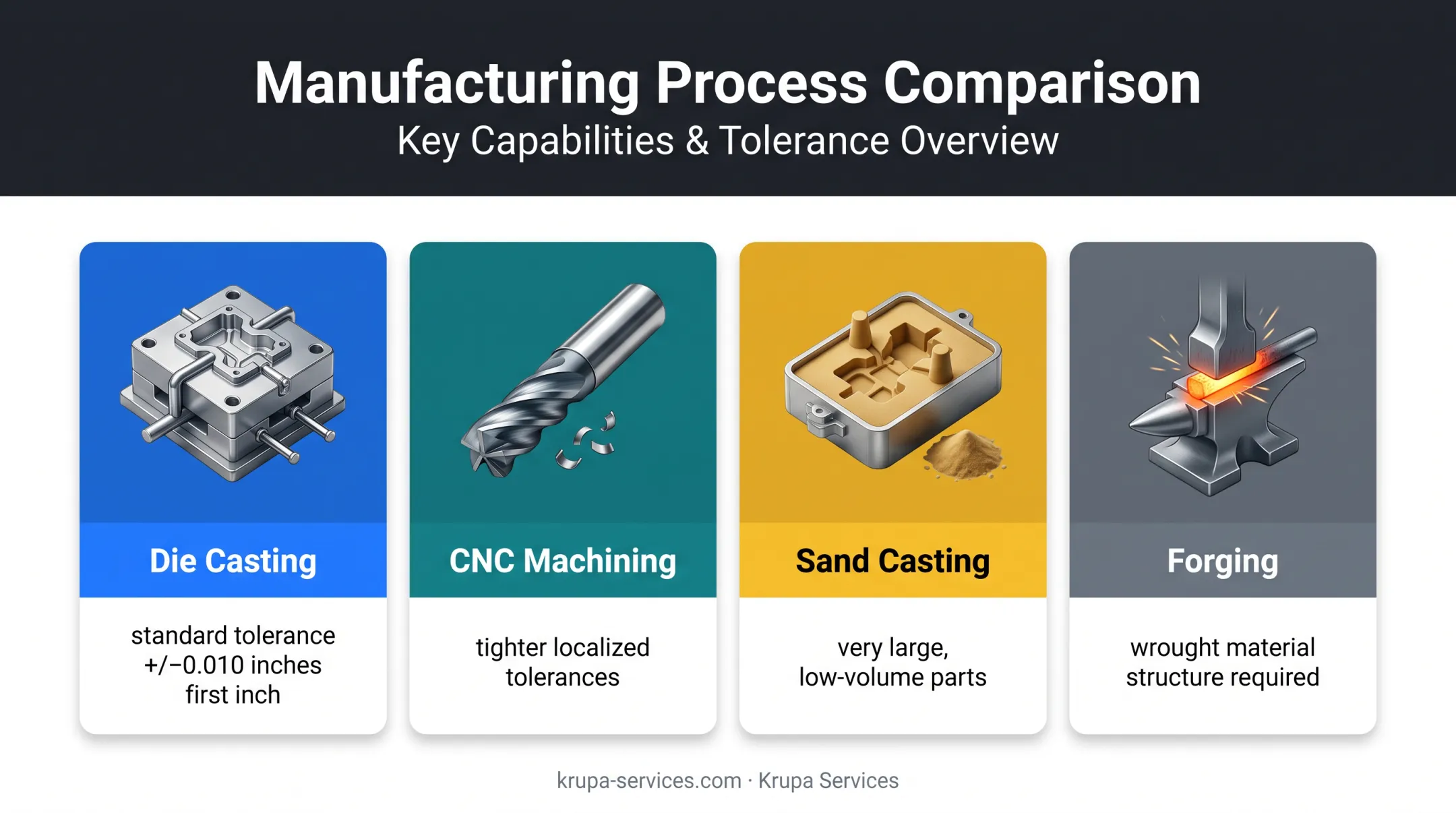

Choosing the right manufacturing process is an operational decision, not a universal requirement. The best choice depends on your part's geometry, production volume, and performance needs.
Die casting can achieve standard linear tolerances of +/-0.010 inches for the first inch, while CNC machining can hold much tighter localized tolerances. Sand casting is often better for very large, low-volume parts, and forging is stronger when a wrought material structure is required.

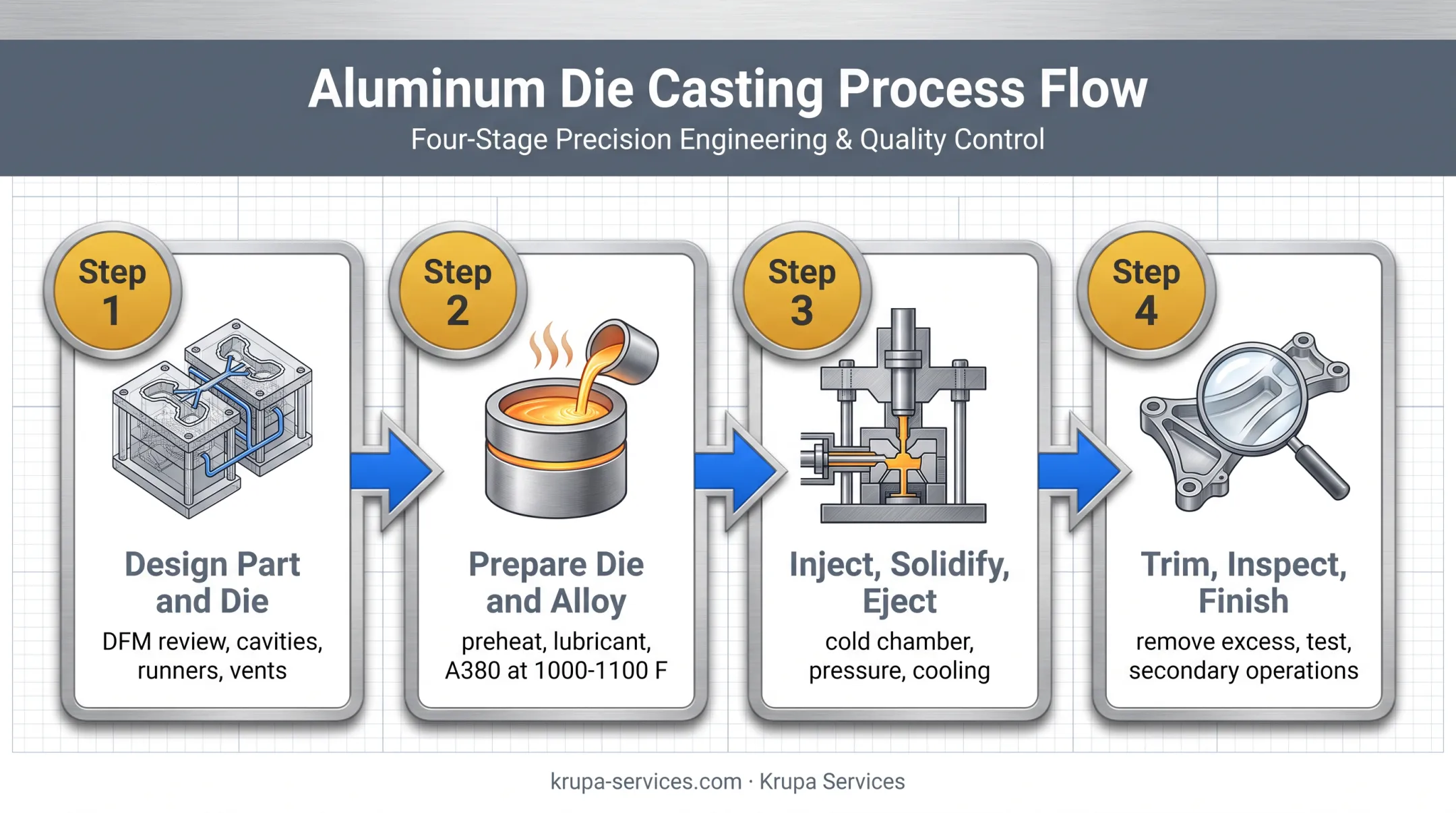

How the Aluminum Die Casting Process Works
The aluminum die casting process is a controlled, end-to-end flow that transforms a digital design into a physical part. It starts with design-for-manufacturing (DFM) analysis and moves through tooling creation, metal preparation, injection, cooling, ejection, and finally, any necessary trimming and finishing.
Process control drives quality. Results hinge on a tight set of variables:
- Alloy chemistry
- Die temperature
- Injection speed and pressure
- Cooling rates
- Lubrication
Aluminum die casting almost always uses a cold-chamber machine. The furnace sits apart from the machine, and a precise amount of molten aluminum is ladled into a "cold" shot sleeve each cycle. That separation protects the injection mechanism from continuous high heat and from molten aluminum's corrosive effects.
Step 1: Design the Part and Die
The process begins with a 3D CAD model of the component. Engineers use that model to design the two halves of the steel die, the fixed half and the movable half. The design must account for every detail of the final part and the process itself, including:
- Cavities and cores: Negative spaces that form the part's shape
- Runners and gates: Channels that guide molten metal into the cavity
- Vents and overflows: Paths that let trapped air escape and support complete fill
- Ejector pins: Mechanisms that push the solidified part out of the die
- Parting line: Seam where the two die halves meet
- Draft and fillets: Tapers and rounded edges that help the part release cleanly
A thorough DFM review is essential. An experienced engineering partner can flag undercuts that need complex tooling, zones where air may trap, and features that are hard to eject.
Uniform wall thickness, generous draft angles, and smooth transitions improve metal flow, raise part quality, and extend tool life.
Step 2: Prepare the Die and Aluminum Alloy
Before injection, technicians preheat the die to a stable operating temperature, clean off debris, and spray on a release lubricant. The lubricant keeps molten aluminum from soldering to the steel tool and helps the part release. The clamping press then closes the die halves and holds them under high force.
At the same time, the selected aluminum alloy melts in a separate holding furnace. For common A380 alloy, the working range is 1000–1100°F (540–595°C). The melt may be treated or filtered to remove impurities, then moved to the casting machine with minimal air exposure to limit oxidation.
Step 3: Inject, Solidify, and Eject the Part
With the die clamped shut, operators ladle a measured "shot" of molten aluminum into the cold-chamber shot sleeve. A hydraulic plunger drives forward, seals the sleeve, and forces the metal into the die cavity at high speed and pressure.
The machine holds that pressure while the aluminum cools and solidifies. Holding pressure reproduces fine detail, limits shrinkage porosity, and keeps the part true to the die dimensions. Cooling channels circulate fluid through the die to control heat removal, which shapes cycle time and final metallurgical structure.
Once the part solidifies, the clamping press opens the die. Ejector pins push the casting from the movable half, and a robot or operator removes it.
Step 4: Trim, Inspect, and Finish
The ejected part, called a "shot," is not finished yet. It remains attached to runners, gates, and overflows. Trimming removes that excess with a dedicated trim die, saw, or other deburring methods.
After trimming, parts go through inspection. Checks can range from visual review and dimensional measurement to leak or pressure tests on fluid-carrying components. For critical applications, X-ray inspection can reveal internal porosity.
Die casting yields a near-net-shape part, but secondary operations are still common. These often include:
- CNC machining for features with very tight tolerances
- Drilling and tapping holes
- Shot blasting for a uniform surface texture
- Powder coat, paint, or another surface treatment
A manufacturing partner like Krupa Services coordinates these post-casting steps and confirms final specifications through processes such as PPAP (Production Part Approval Process) before mass production begins.
Where Aluminum Die Casting Is Applied and What Affects Results
Aluminum die casting is used across a vast range of industries to produce components that are lightweight, durable, and complex. Common applications include:
- Automotive: Transmission housings, engine blocks, brackets, and structural parts
- EV & Electronics: Power-electronics enclosures, battery housings, and heat sinks
- Industrial & Agricultural Machinery: Gearbox housings, pump components, and equipment hardware
- Renewable Energy: Mounting hardware and enclosures for solar and wind systems
- Appliances & Tools: Power-tool housings and home-appliance components
Whether die casting is the right fit comes down to part complexity, alloy choice, production volume, and how much tooling investment you can support.
Alloy and Material Selection

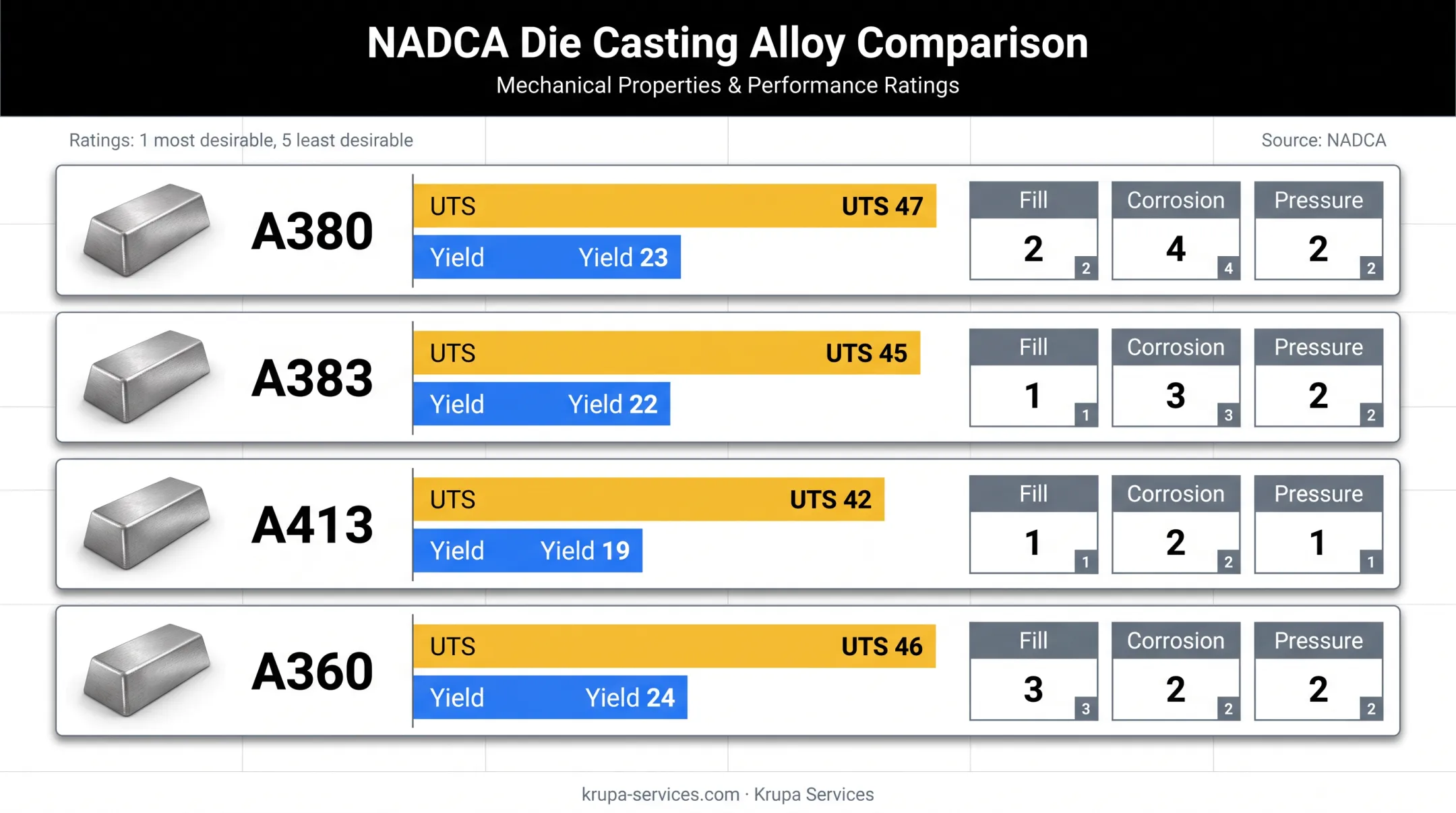

Alloy choice sets castability, strength, corrosion resistance, and cost. Per North American Die Casting Association (NADCA) standards, common options include:
| Alloy | UTS (ksi) | Yield (ksi) | Die-Filling Capacity | Corrosion Resistance | Pressure Tightness |
|---|---|---|---|---|---|
| A380 | 47 | 23 | 2 | 4 | 2 |
| A383 | 45 | 22 | 1 | 3 | 2 |
| A413 | 42 | 19 | 1 | 2 | 1 |
| A360 | 46 | 24 | 3 | 2 | 2 |
Ratings are on a scale of 1 (most desirable) to 5 (least desirable).
- A380: The most common and versatile die-casting alloy, offering a good balance of properties and ease of production.
- A383: An alternative to A380, chosen for intricate components that require better die-filling characteristics.
- A413: Known for its excellent pressure tightness and die-filling capacity, making it ideal for leak-proof housings.
- A360: Offers superior corrosion resistance and strength at elevated temperatures but is generally more difficult to cast.
Tooling, Geometry, and Process Conditions
Die design drives metal flow and air escape. Cavity layout, parting-line placement, and gate and vent design determine whether the shot fills cleanly. Weak design invites trapped-gas porosity or cold shuts, where cooling metal streams fail to fuse.
Part geometry matters as much as the tool. Sharp wall-thickness jumps create hot spots that cool slowly and shrink into porosity. Reliable castings favor:
- Uniform wall thickness
- Smooth section transitions
- Adequate draft for clean ejection
Quality, Scale, and Production Planning
Tooling cost only pays off at the right volume. Recurring programs should plan die maintenance—and spare tooling when uptime is non-negotiable.
Before launch, lock down:
- Critical-to-function features and tolerances
- Cosmetic zones
- Inspection and acceptance criteria
That clarity prevents scope gaps and keeps finished parts aligned with expectations. Porosity, inclusions, and dimensional drift map back to process variables a capable partner can control.
Aluminum also supports sustainability goals. A study by the Aluminum Association found the weighted-average recycling rate for automotive aluminum in the US is 91%, which strengthens the case for die-cast aluminum in high-volume programs.
Manufacturing Partner Considerations
Process control only holds if the supplier can sustain it. When engineering and procurement evaluate partners, prioritize:
- Design-for-Manufacturing (DFM) support: Optimize the part for quality and cost before steel is cut
- Process and alloy expertise: Match alloy and parameters to the application
- Quality systems: Documented inspection, process control, and validation such as PPAP
- Integrated capabilities: Machining, finishing, and assembly under one coordinated flow
- Supply chain resilience: Vetted capacity so a single shop issue does not stop shipments
Krupa Services coordinates precision-engineered components across a network of 100+ vetted manufacturers. That model helps teams align alloy, tooling, quality gates, and secondary operations with both technical specs and commercial targets.
Common Issues and When Aluminum Die Casting May Not Be Appropriate
Aluminum die casting is capable, but it has clear limits. A common misconception is that die-cast parts are free of porosity. In reality, every casting has some microscopic porosity.
The practical goal is to control where that porosity sits and how extensive it is so it does not hurt function.
Corrosion confuses buyers just as often. Aluminum resists corrosion well because a protective oxide layer forms naturally on the surface, yet it is not "rust-proof." Alloy composition, operating environment, and contact with other metals (galvanic corrosion) all affect risk.

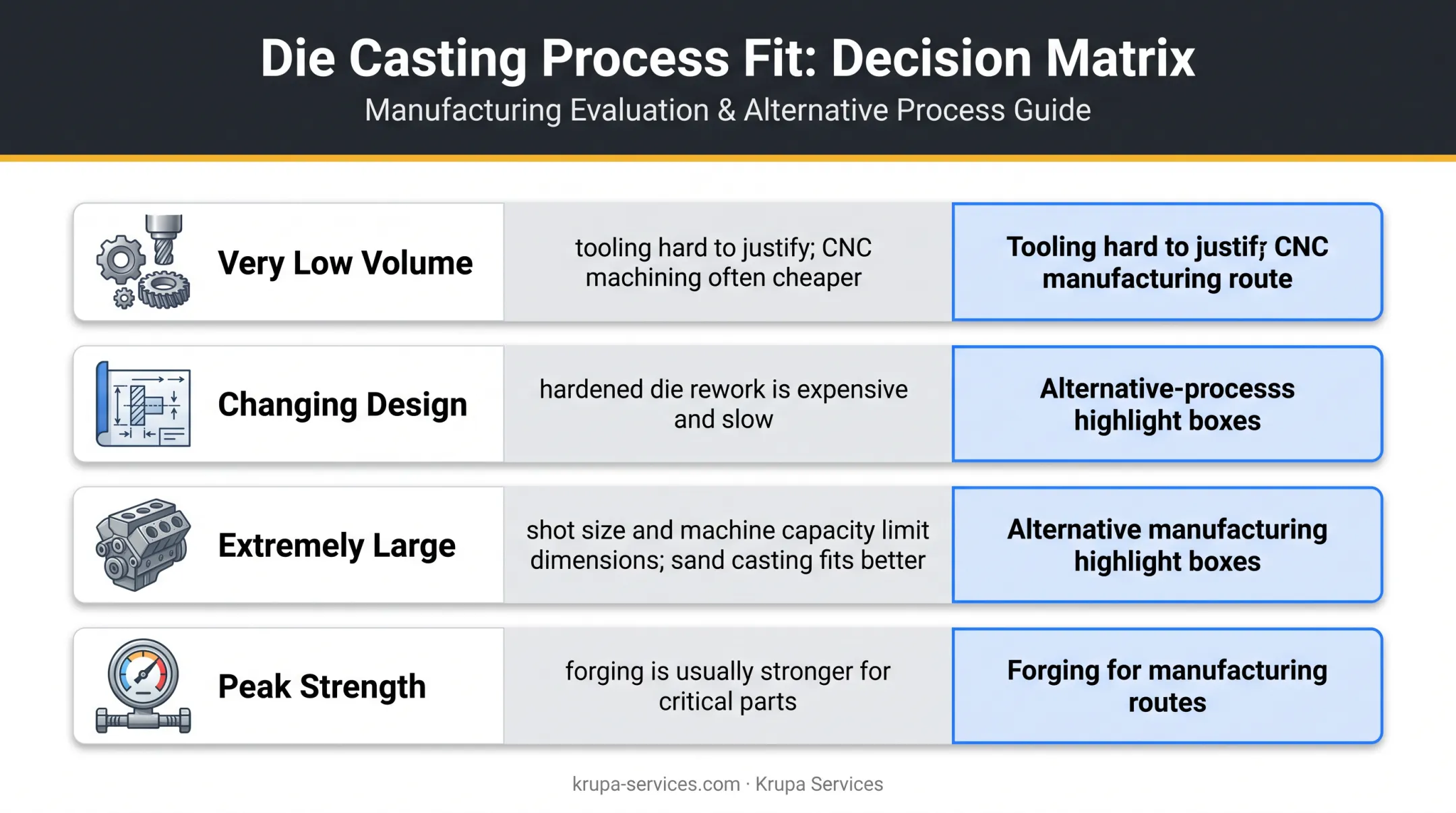

Die casting is not always the right process. Choose an alternative when:
- Production volume is very low: Tooling is hard to justify for prototypes or short runs. CNC machining from solid stock is often cheaper.
- The design still changes often: Reworking a hardened steel die is expensive and slow.
- The part is extremely large: Shot size and machine capacity cap die-cast dimensions. Sand casting fits very large components better.
- Peak strength is mandatory: For critical parts that need the highest strength, forging (shaping metal in the solid state) is usually the stronger path.
Defaulting to die casting is a red flag when tooling cost cannot be paid back on volume, the design has severe thickness variation, or required properties sit beyond what cast alloys can deliver.
Conclusion
Aluminum die casting transforms molten alloy into repeatable, complex, and near-net-shape components. Consistent results come from controlled die design, alloy selection, process parameters, and quality control working together.
The right process still has to match the part's performance and commercial requirements. For many medium- to high-volume runs, die casting delivers complex geometry and tight tolerances at a competitive unit cost. For other programs, CNC machining, sand casting, or forging may fit better.
A manufacturing and sourcing partner with casting experience can help you compare those options and lock in the process that fits volume, tolerance, and cost targets. Krupa Services supports teams evaluating aluminum die casting against alternatives and managing production through qualified suppliers.
Frequently Asked Questions
What is aluminum die casting?
Aluminum die casting is a manufacturing process where molten aluminum alloy is injected under high pressure into a reusable steel die. It produces large volumes of complex, dimensionally accurate, lightweight metal parts.
How does aluminum die casting work?
Molten aluminum is ladled into a cold-chamber machine and injected under high pressure into a steel die. The part solidifies under pressure, then the die opens and the casting is ejected for trimming and inspection.
What are the steps involved in die casting aluminum?
Core stages include part and die design, die preparation and alloy melting, high-pressure injection, solidification, and ejection. Trimming, inspection, and any required finishing complete the process.
Which aluminum alloys are commonly used for die casting?
Common alloys include A380, A360, A383, and A413. The final choice depends on the part's requirements for strength, corrosion resistance, pressure tightness, and castability in complex geometries.
Is die-cast aluminum the same as cast aluminum?
No. Die-cast aluminum is a specific type of cast aluminum made under high pressure in a reusable steel die. The term "cast aluminum" can also refer to parts made by other methods like sand casting or permanent-mold casting.
What are the different types of die casting?
Processes can be high-pressure or low-pressure. Machines are configured as either hot-chamber or cold-chamber. Aluminum, with its high melting point, is almost always cast using a cold-chamber, high-pressure process.
