Introduction
Polyurethane vacuum casting is a low-volume manufacturing process that uses a silicone mold, liquid polyurethane resin, and vacuum-assisted degassing to reproduce a master model in detail.
This guide is written for US-based product designers, engineers, procurement teams, and manufacturers evaluating prototypes, bridge production, or short-run plastic components. Many teams struggle to choose between 3D printing, vacuum casting, and injection molding when appearance, repeatability, and low tooling investment all matter.
You'll often hear "vacuum casting," "urethane casting," and "polyurethane casting" used as if they mean the same thing. They don't. Vacuum casting names the process; urethane and polyurethane casting point to the resin family used in it. This article covers the process flow, material selection, real-world applications, common defects, and when to choose a different manufacturing route entirely.
Key Takeaways
- Vacuum casting is the process; polyurethane resin is the material most often cast
- A master pattern and silicone mold yield detailed parts without hard tooling
- Mold life, lead time, and tolerances vary by supplier, resin, and geometry: confirm on every quote
- Part quality hinges on the master, mold design, resin choice, vacuum control, and finish
- Best for prototypes, presentation models, functional tests, and short runs—not mass production
What Is Polyurethane Vacuum Casting and Why Is It Used?
Polyurethane vacuum casting combines three elements: a master pattern, a silicone mold built around it, and a two-component liquid polyurethane resin poured into that mold under vacuum. The vacuum step reduces trapped air so the resin flows into fine details, thin walls, and corners before it cures. Formlabs describes the process as casting urethane resin between silicone mold halves and curing it under vacuum to prevent air intrusion.
The process reproduces the master's geometry, texture, color, and selected material behavior across one or more polyurethane parts.
How It Differs From Injection Molding
Vacuum casting draws liquid resin into a flexible silicone cavity at low pressure. Injection molding forces molten thermoplastic into hardened steel or aluminum tooling under high pressure. That single difference explains most of the cost, speed, and durability gaps between the two methods.
Polyurethane resins can be formulated to mimic ABS, polypropylene, polycarbonate, nylon, or rubber. A resin that behaves like ABS is not chemically ABS. Mechanical properties, heat resistance, and long-term durability can differ even when the surface finish looks identical.
Why Manufacturers Choose It
Teams turn to vacuum casting for several practical reasons:
- Lower tooling cost than steel injection molds
- Geometry changes without new hard tooling
- Realistic surface quality for presentation models and customer testing
- Complex geometry, including undercuts a rigid mold can't release
- Form, fit, and function testing before production tooling

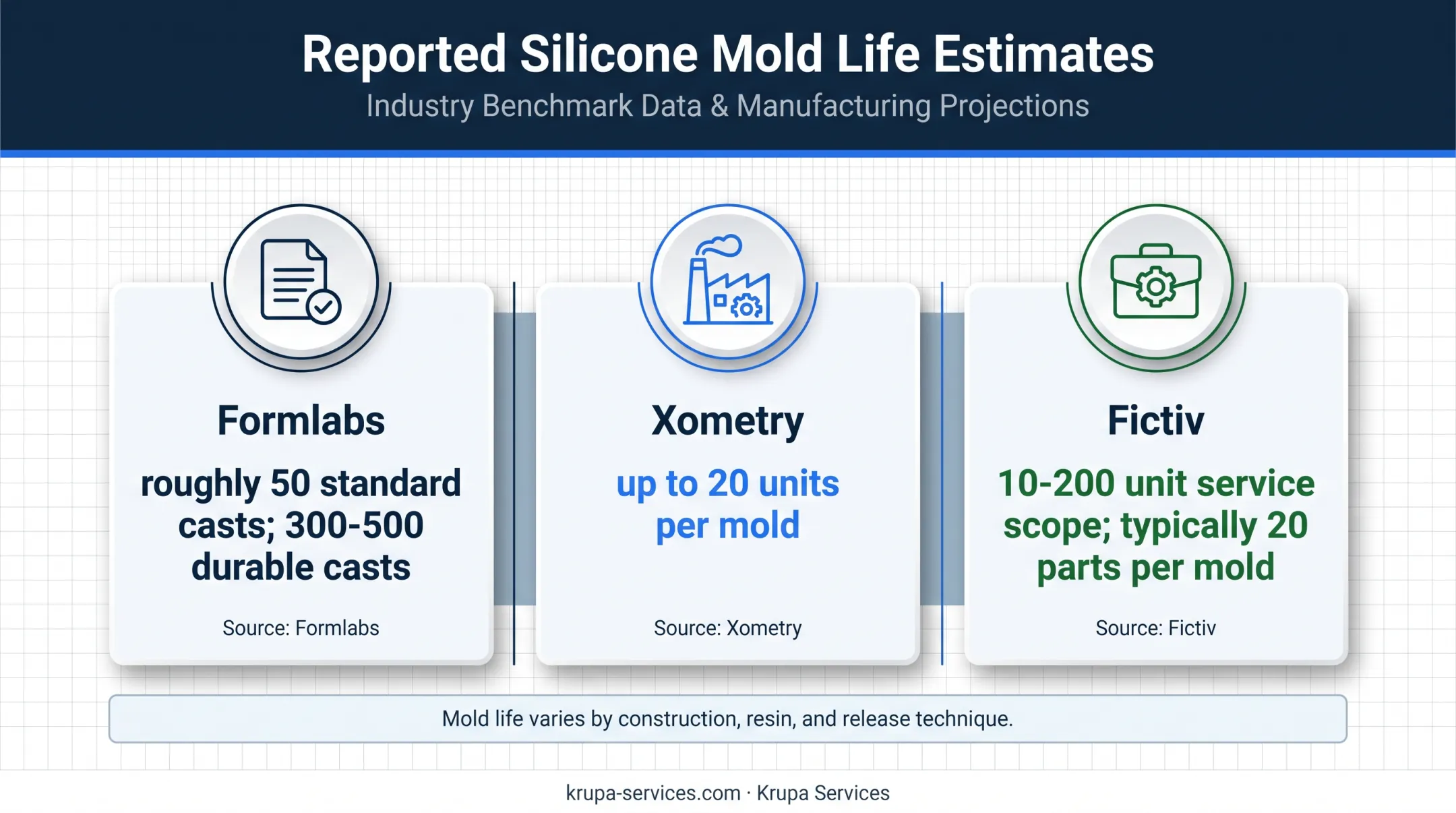

On typical output, Formlabs reports roughly 50 casts from a standard silicone mold, with more durable builds reaching 300–500 casts. Xometry cites up to 20 units per mold before quality drops. Fictiv lists a service scope of 10–200 units, typically around 20 parts per mold.
Those ranges differ because mold construction, resin abrasiveness, and release technique all affect usable mold life. There is no single industry standard.
Relative to other low-volume methods:
- Versus 3D printing: smoother surfaces and more consistent mechanical properties across identical parts
- Versus CNC machining: complex internal geometry and undercuts at lower cost in small batches
Choose vacuum casting when you need several production-like copies. Choose 3D printing for one-off iterations.
How the Polyurethane Vacuum Casting Process Works

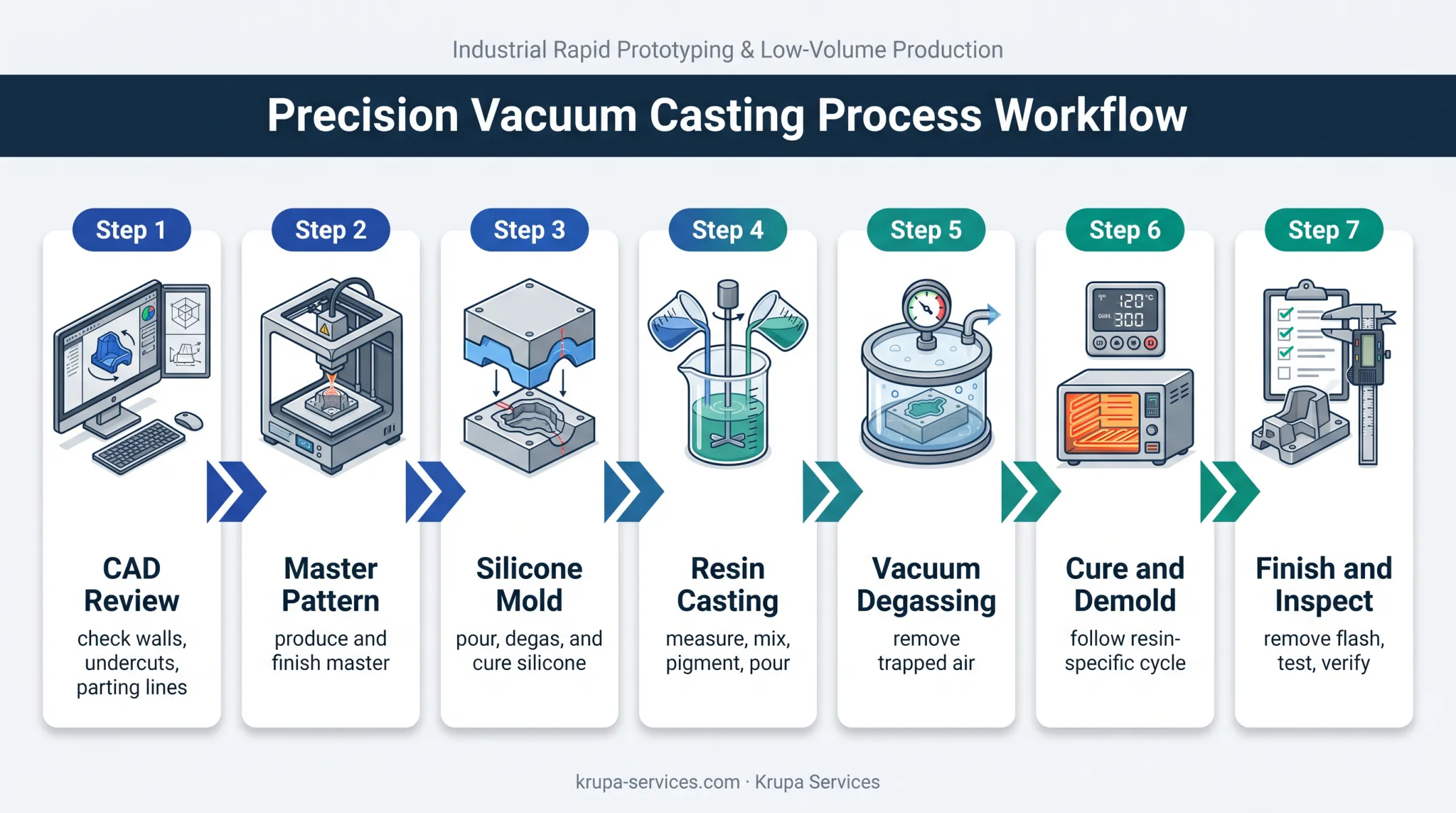

The process runs through a defined sequence: CAD review, master pattern production, silicone mold creation, resin mixing and casting, curing, demolding, and finishing.
Step 1: Review the CAD Model and Prepare the Master Pattern
Engineers first check wall thickness, undercuts, parting lines, draft angles, and expected shrinkage before building the master. This step catches problems before they get baked into every future part.
The master is typically produced by:
- SLA or other high-resolution 3D printing, favored when a smooth pattern surface matters
- CNC machining, still a solid option for certain geometries
Whatever method you choose, imperfections carry through every single cast part. Scratches, support marks, and layer lines on the master get reproduced in the mold, then in every part poured from it. Sanding, sealing, and polishing the master before mold-making isn't optional if surface finish matters.
Step 2: Build and Cure the Silicone Mold
The finished master goes into a mold box. Mold design at this stage determines the parting line, registration features, gates, vents, and how the part will eventually be demolded.
Two-part silicone is mixed, poured around the master, degassed under vacuum, and cured. Once cured, the mold is opened and the master removed, leaving behind a negative cavity. Flexible silicone releases undercuts a rigid mold could not, but it can tear or deform if handled roughly or reused past its service life.
Step 3: Mix, Degas, and Pour the Polyurethane Resin
Resin components are measured precisely, mixed, and pigmented if color matching is required. Working time and temperature windows are set by the resin manufacturer and vary by system.
Vacuum degassing pulls entrapped air out of the liquid resin before or during pouring, helping it reach thin sections and fine surface detail. Fill port placement, resin viscosity, mold orientation, and vacuum level all affect whether the mold fills completely without bubbles.
Step 4: Cure, Demold, Finish, and Inspect
Cure time and temperature depend entirely on the resin system, part thickness, and supplier instructions — there's no universal cycle. As one documented example, Renishaw's 5175 vacuum-casting resin lists a 540-second gel time and a 90-minute demold time, with shrinkage of 0.1–0.2 mm/mm noted on its data sheet. Treat resin-specific figures like these as reference points, not defaults for every system.
After curing, parts are demolded carefully, gates and flash removed, then sanded, painted, or coated as specified. Quality checks typically include:
- Visual inspection for surface defects, voids, or incomplete fills
- Dimensional measurement against CAD tolerances
- Color and finish verification
- Hardness or functional testing when the application requires it
Materials, Applications, and Key Factors That Affect Results
Vacuum casting isn't limited to one resin type. Supplier catalogs commonly include:
- Rigid ABS-like and polycarbonate-like resins
- Transparent systems and flexible elastomeric grades
- Impact-resistant formulations
- Flame-retardant options with documented ratings (BJB's TC-890 FR carries a UL flammability listing at 1.6 mm thickness)
Choosing the Right Resin
Build your material selection around these factors:
- Mechanical needs — stiffness, impact resistance, flexibility, hardness
- Optical requirements — transparency, translucency, color matching
- Environmental exposure — heat, chemicals, UV, moisture
- Wear and service life — how long the part needs to perform
The silicone mold material is a separate decision from the casting resin. Silicone hardness, shrinkage rate, and release compatibility all affect how faithfully the mold reproduces the master and how many usable cycles it survives.
Where This Process Fits Industrial Work
Across industrial sectors, vacuum-cast polyurethane parts include:
- Automotive and off-highway component prototypes
- Electronics and communication equipment housings
- Industrial machinery covers and guards
- Renewable-energy enclosure mockups for solar, wind, and hydropower mounting systems
- Agricultural equipment component prototypes
- Construction and infrastructure equipment parts
Not every cast part serves the same purpose:
- Appearance models prioritize surface finish and color
- Functional prototypes need mechanical properties close to the end-use material
- Bridge-production parts fill the gap while hard tooling is built
- Limited end-use components require documentation and validation matching their service conditions
Each category calls for different inspection rigor and material selection.
Design and Process Factors That Change Outcomes
Results depend on more than resin choice:
- Wall-thickness variation and deep undercuts
- Sharp internal corners and rib/boss placement
- Master-pattern surface quality and dimensional accuracy
- Silicone mold age and condition
- Mix ratio accuracy, degassing time, and cure conditions
What to Include in a Quote Request
Before requesting quotes, gather:
- 3D CAD files and 2D drawings with tolerances
- Target quantity
- Material performance requirements
- Color and surface finish specifications
- Insert or assembly requirements
- Testing requirements and delivery timeline
Krupa Services approaches manufacturing sourcing through precision engineering, supplier coordination, and cross-industry procurement across automotive, renewable energy, industrial machinery, and construction sectors. When a project spans prototyping through production components, match the process to quantity, material requirements, and timeline before you commit.
Common Issues and When Vacuum Casting Is Not Appropriate
Most vacuum-casting defects trace back to process control or mold design, not the resin itself.
| Defect | Likely Cause |
|---|---|
| Bubbles or voids | Trapped air, moisture, or poor degassing |
| Short or incomplete fills | Poor venting or fill-port placement |
| Flash | Gaps at mold parting line |
| Unmixed streaks | Poor resin mixing or pour technique |
| Warpage | Uneven wall sections or inconsistent cure |
| Surface defects | Scratches or marks copied directly from the master |
Misconceptions Worth Correcting
A few assumptions cause real problems downstream:
- A cast part is not an injection-molded part. Even a resin formulated to resemble ABS won't match injection-molded ABS in every mechanical or thermal property.
- Not every polyurethane resin behaves the same. Rigid, flexible, transparent, and impact-resistant grades have distinct performance profiles.
- Silicone molds don't last forever. Cycle life depends on geometry, resin abrasiveness, and handling — published figures range from roughly 20 to several hundred casts depending on the source and mold build.
A visually accurate cast part can still fail under high temperature, long-term UV, chemical exposure, or load-bearing service. Medical and regulated applications need a material and validation plan that specifically support that use.

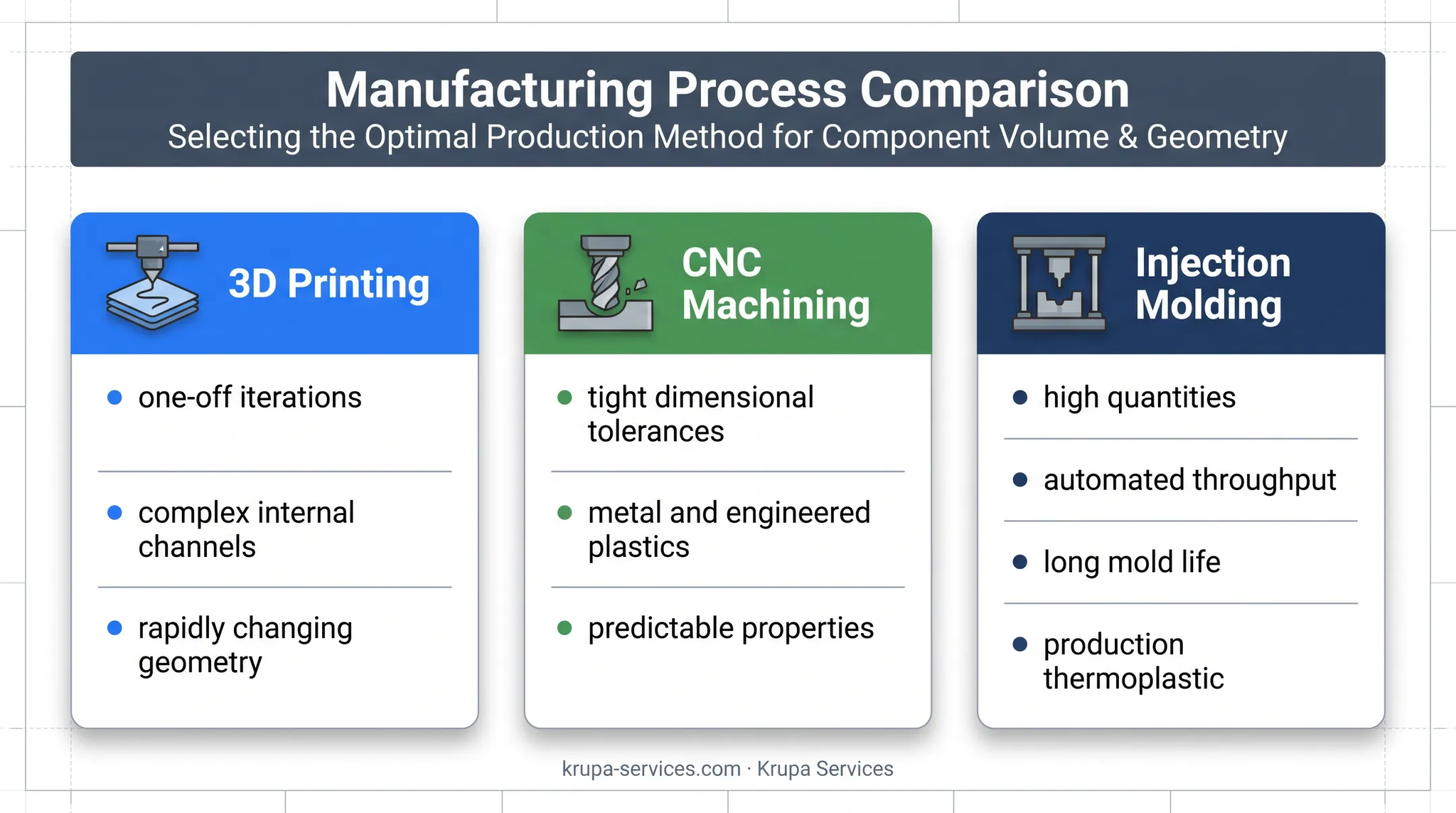

When to Choose a Different Process
- 3D printing for one-off design iterations, highly complex internal channels, or geometry that is still changing rapidly.
- CNC machining when you need tight dimensional tolerances or predictable metal and engineered-plastic properties.
- Injection molding for high quantities, automated throughput, long mold life, and repeatable use of a specific production thermoplastic.
Run through this checklist before defaulting to vacuum casting:
- What quantity do you actually need?
- Does the part require specific material certifications?
- What's the tolerance requirement, and can silicone tooling hold it?
- Will the part face heat, UV, or chemical exposure in service?
- What's the total project timeline and budget?
A short technical review against these questions beats guessing.
Conclusion
Polyurethane vacuum casting combines a carefully prepared master pattern, silicone tooling, liquid resin, vacuum control, curing, and finishing to produce detailed, low-volume parts. It fits best when teams need production-like appearance and functional testing without committing to hard tooling right away.
Good results still come down to a few fundamentals:
- Correct material selection for the end-use environment
- Sound mold design and tight process control
- Inspection matched to how the part will actually be used
Do not choose vacuum casting only because it looks faster or cheaper on paper.
Krupa Services helps teams compare component and sourcing options across automotive, renewable energy, construction, and industrial machinery applications. If you are weighing vacuum casting against other manufacturing routes for an upcoming project, reach out to discuss your requirements.
Frequently Asked Questions
Can you cast polyurethane?
Yes. Polyurethane is cast as a two-component liquid resin into a silicone mold, with vacuum degassing or vacuum-assisted filling used to reduce bubbles and reproduce fine detail accurately.
What materials can be vacuum cast?
Vacuum casting most commonly uses polyurethane or urethane resins, including rigid, flexible, transparent, impact-resistant, and heat-resistant formulations. Exact availability depends on your supplier and application.
What is the difference between polyurethane casting and vacuum casting?
Polyurethane is the material being cast; vacuum casting is the process environment that uses vacuum pressure to remove trapped air and improve mold filling. One term describes a substance, the other a method.
How many parts can one silicone mold produce?
Estimates vary widely by source — anywhere from about 20 to several hundred casts, depending on silicone type, part geometry, resin chemistry, and handling. Get a mold-life estimate specific to your part from your supplier.
Is polyurethane vacuum casting suitable for mass production?
Generally, no. It's intended for prototypes, bridge production, and low-volume runs. Injection molding or other automated processes are better suited to sustained high-volume manufacturing.
How does vacuum casting compare with 3D printing and injection molding?
Vacuum casting sits between the two: lower tooling cost than injection molding, and better surface finish plus more consistent material properties than 3D printing across identical parts. The right choice depends on your quantity, geometry, and timeline.
