Many engineering teams struggle to decide between sand casting, permanent mold, and die casting when a part moves from prototype to production. The wrong call can mean overpaying for tooling on a low-volume part, or fighting porosity and dimensional drift on a part that needed tighter process control from the start.
This guide breaks down what permanent mold aluminum casting actually is, how the process works, where it beats sand and die casting, what drives cost, and how to evaluate whether it fits your part.
Key Takeaways
- Permanent mold casting uses reusable metal tooling, making it a strong fit for repeat production runs.
- Aluminum brings weight, corrosion, and thermal advantages, but alloy choice and process control determine the actual result.
- Let volume, geometry, and tolerance needs drive the choice—permanent mold is not the default for every part.
- Total landed cost, not piece price alone, should guide your final process selection.
What Is Permanent Mold Aluminum Casting?
Permanent mold casting is a process where molten aluminum is poured into a reusable metal mold, typically machined from heat-resistant steel or iron. Unlike sand casting, the same metal cavity is reused instead of building and destroying a new sand mold for every part.
According to ASM International, permanent mold castings can be produced using gravity, low pressure, vacuum, or centrifugal pressure to fill the cavity. That filling method sets the process apart from high-pressure die casting, which forces molten metal into the die under significant pressure.
The reusable mold changes the economics. Instead of building a new cavity for every pour, the same tool produces part after part. Tooling cost is spread across the production run, which is why volume matters when you evaluate this process.
Why Aluminum Is the Common Choice
Aluminum dominates permanent mold casting for practical reasons:
- Low density — roughly one-third the weight of steel, which cuts component mass
- Corrosion resistance that varies by alloy family
- Thermal and electrical conductivity for housings and heat-transfer parts
- Machinability that supports the secondary operations most castings still need
Alloy choice changes strength and corrosion performance considerably—copper-bearing alloys behave differently from other families—so confirm alloy-specific data before locking a design.
What Comes Out of the Mold
A permanent mold aluminum casting is near-net-shape, not finished. Expect to follow up with trimming, potential heat treatment, CNC machining on critical surfaces, and dimensional or leak inspection before the part is production-ready. Those finishing steps are standard across the industry before a part is production-ready.

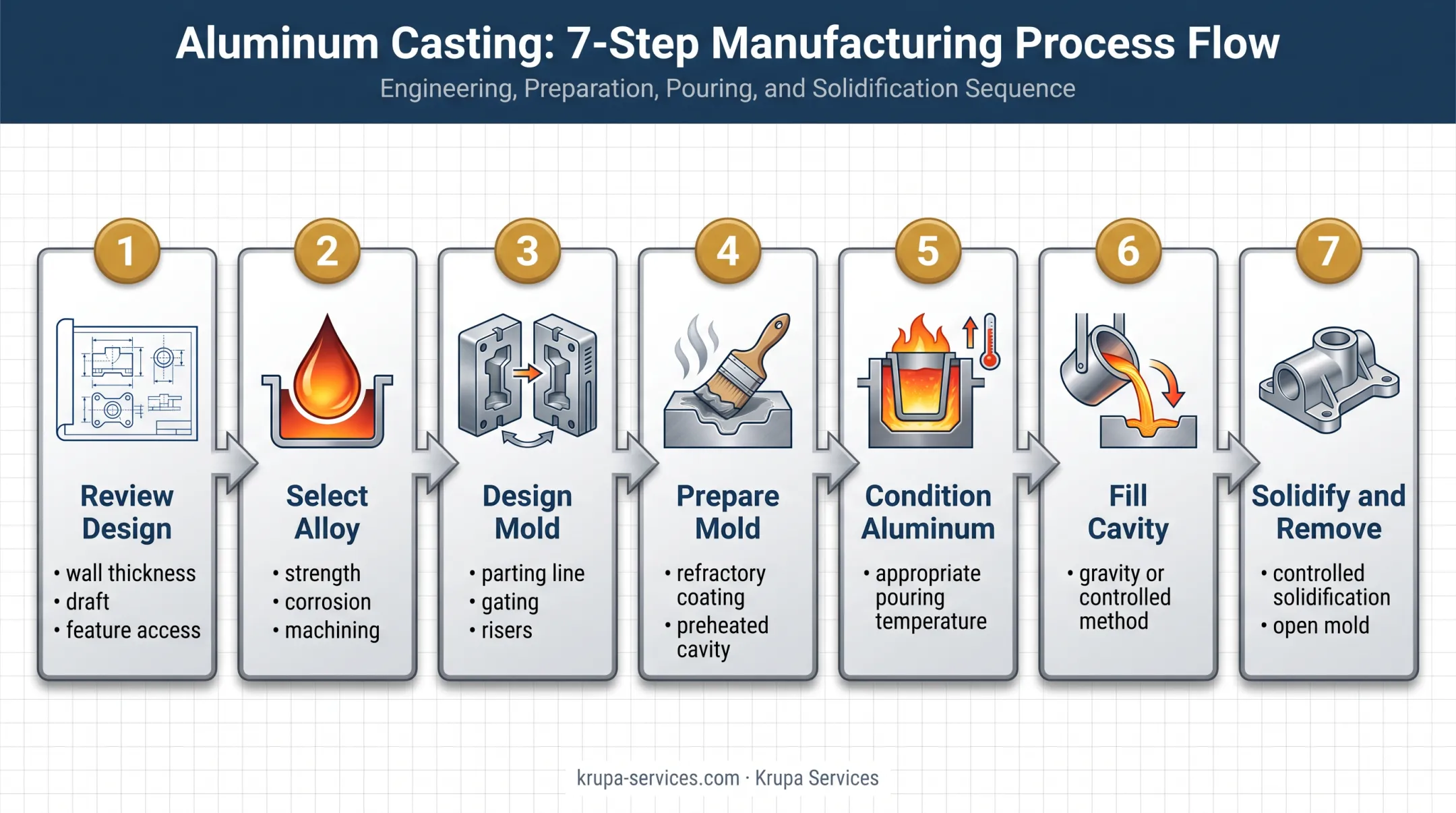

How the Permanent Mold Casting Process Works
The process follows a defined sequence, and skipping steps tends to show up later as scrap or rework.
- Review the part design for wall thickness, draft, and feature accessibility
- Select the alloy based on strength, corrosion, and machining requirements
- Design the mold and parting line, including gating and riser placement
- Prepare the mold, applying refractory coatings to the preheated cavity
- Melt and condition the aluminum to the appropriate pouring temperature
- Fill the cavity using gravity or another controlled method
- Allow controlled solidification, then open the mold and remove the casting
Two details in that sequence drive most quality outcomes: gating and mold coatings.
Why Gating and Coatings Matter More Than They Look
Mold coatings, gating design, and venting aren't cosmetic details. A DOE-funded study on permanent mold gating found that improper gating can entrain aluminum oxide films and trap gas during filling, both of which show up as defects after the part cools. Gating has to match the casting's shape and size, not follow a generic template.
Mold life itself depends on pouring temperature, casting geometry, cooling method, and how well the coating gets maintained between cycles. Skip coating maintenance, and cavity quality degrades faster than expected.
Cores for Complex Internal Features
When a part needs internal passages, undercuts, or cavities that the two mold halves can't form directly, cores are required. These can be reusable metal cores or expendable sand cores, depending on the internal geometry required. A pump housing with internal fluid channels, for example, typically needs a core that gets removed after the casting solidifies.
From Rough Casting to Finished Part
Post-casting steps include:
- Removing gates and risers
- Deburring rough edges
- Heat treatment, where the alloy and specification call for it
- CNC machining of critical surfaces and mounting datums
- Dimensional or non-destructive inspection before shipment
Think of a structural bracket for off-highway equipment. It starts as a 3D CAD file, gets a mold designed around its parting line and draft angles, then moves through pouring, solidification, trimming, and machining before it ever reaches an assembly line.
Benefits, Limitations, and Applications of Permanent Mold Aluminum Castings
Reusable rigid tooling produces more consistent cavity geometry than sand molds allow, and that consistency compounds across a production run.
According to Batesville Products' comparison of the two methods, permanent mold surface finish typically falls in the 200-420 RMS range, compared to 300-560 RMS for nonferrous sand casting. Tighter linear tolerances follow the same pattern.
That dimensional consistency still depends on thermal control. Controlled solidification and proper riser design support soundness, but they don't eliminate risk entirely. Porosity, shrinkage, and inclusions remain possible if the gating or cooling isn't dialed in correctly.
Where the Economics Work in Your Favor
Tooling costs more upfront than sand casting, but the same comparison from Batesville positions permanent mold as generally suited to production runs above roughly 500 pieces annually. Sand casting stays favored for prototypes or smaller quantities.
Spread that tooling cost across a few thousand parts, and the per-piece economics often beat both sand casting and die casting for the right geometry.
Aluminum's weight reduction, corrosion resistance, and machinability make this process attractive for:
- Automotive and off-highway equipment components
- Industrial machinery housings and covers
- Agriculture and construction equipment parts
- Renewable energy mounting and structural hardware
- Power generation and oil and gas field components
Where It Falls Short
- Geometry limits. Draft and parting-line requirements restrict some shapes sand casting handles easily
- Cycle time. Longer than high-pressure die casting for comparable parts
- Core complexity. Internal features may require additional core work
- Volume threshold. Low-quantity projects often can't justify reusable tooling costs
The Best-Fit Summary
Permanent mold casting fits parts needing repeat production, moderate-to-tight tolerances, and better surface finish than sand casting, without die casting's tooling investment.
Krupa Services works with aluminum, zinc-coated, and other alloy castings for applications including engine manifolds and turbine blade components, where lightweight construction and thermal performance matter. Projects with lower volume, larger size, or highly complex internal geometry often fit sand casting, machining, or fabrication better.

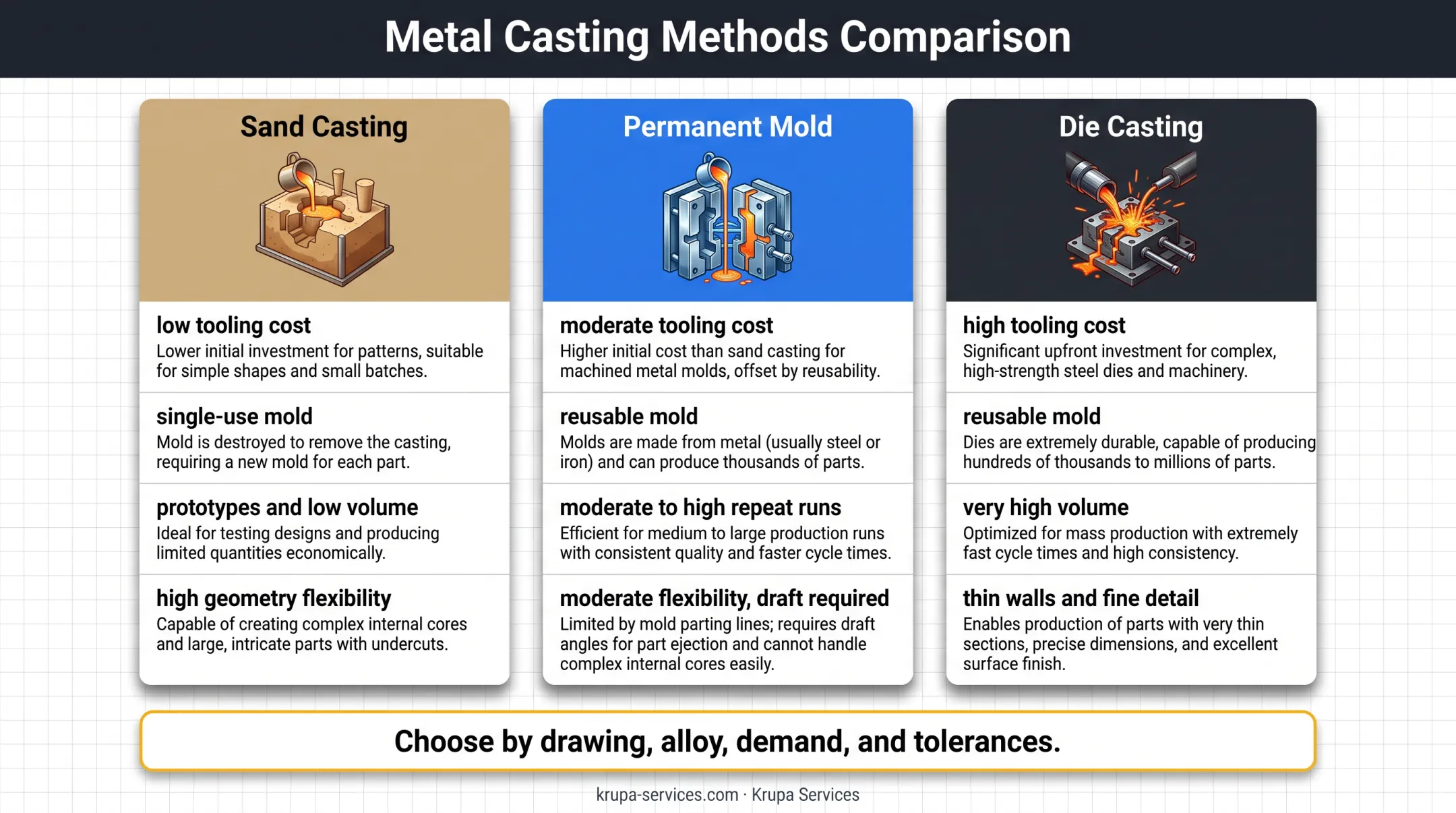

Permanent Mold vs. Sand Casting vs. Die Casting
Each process trades tooling investment against speed, geometry flexibility, and repeatability. Here's how they stack up:
| Factor | Sand Casting | Permanent Mold | Die Casting |
|---|---|---|---|
| Tooling cost | Low | Moderate | High |
| Mold reusability | Single-use | Reusable | Reusable |
| Surface finish | 300-560 RMS | 200-420 RMS | Typically finer than permanent mold |
| Production speed | Slower, manual | Moderate | Fast, high-volume |
| Best-fit volume | Prototypes, low volume | Moderate to high repeat runs | Very high volume |
| Geometry flexibility | High, including large parts | Moderate, draft required | Thin walls, fine detail |
When Each Process Makes Sense
Sand casting works when you need flexible tooling for prototypes, oversized parts, or complex shapes, and you're not ready to commit to reusable mold costs. Expect more finishing work and a new mold for every casting.
Permanent mold casting occupies the middle ground. You get reusable tooling and better repeatability than sand casting, with lower tooling complexity than die casting. The tradeoff is longer cycle time and more design discipline around draft and wall uniformity.
Die casting fits very high-volume runs that need thin walls and fine detail. According to NADCA, the process forces molten metal into the die under high pressure for rapid production. Tooling investment runs higher, and trapped-gas considerations can limit heat treatment options for some alloys.
No single process wins universally. The right choice depends on your actual drawing, alloy, annual demand, and tolerance requirements. Run the numbers on all three before committing.
Cost Factors and Design Considerations
Material weight alone never tells the whole cost story. A permanent mold aluminum casting quote depends on:
- Tooling and engineering for mold design and mold life planning
- Alloy selection, which affects both material cost and machinability
- Mold preparation, including coating application and maintenance
- Labor, energy, and cycle time per casting
- Cores or inserts for internal features
- Trimming, heat treatment, and machining of critical surfaces
- Inspection, packaging, and freight
Geometry, wall thickness, projected area, and casting yield can shift total cost significantly, even when two parts weigh the same.
Design Choices That Affect Castability
Getting these details right early avoids expensive redesigns later:
- Uniform wall transitions instead of abrupt thickness changes
- Adequate draft angle, generally around 3 degrees, to support ejection
- Rounded corners rather than sharp transitions, reducing cracking risk
- Accessible machining datums for downstream operations
- Controlled parting lines that account for concentricity and tolerance needs
How Volume Changes the Math
Higher repeat volumes spread tooling and engineering costs across more parts, lowering cost per part. Lower volumes often favor sand casting, machining, or a soft-tool approach instead.
Krupa Services' Consulting Solutions team offers product costing analysis to help teams weigh these tradeoffs before committing to a process.
Pre-Quote Checklist
Before requesting a quote, gather:
- 3D CAD files and 2D drawings with critical dimensions marked
- Alloy or performance requirements
- Annual and batch volume estimates
- Pressure or leak-testing requirements
- Finish expectations and inspection documentation needs
- Delivery schedule
Choosing a Manufacturing Partner for Permanent Mold Aluminum Castings
Not every supplier handles casting the same way, and the differences matter once you're relying on repeat quality across thousands of parts. Ask potential partners about:
- Mold design ownership and alloy traceability
- Process controls and defect-prevention methods
- Inspection equipment and documentation practices
- Heat treatment, machining, and finishing capabilities
- Capacity, lead time, and corrective-action procedures

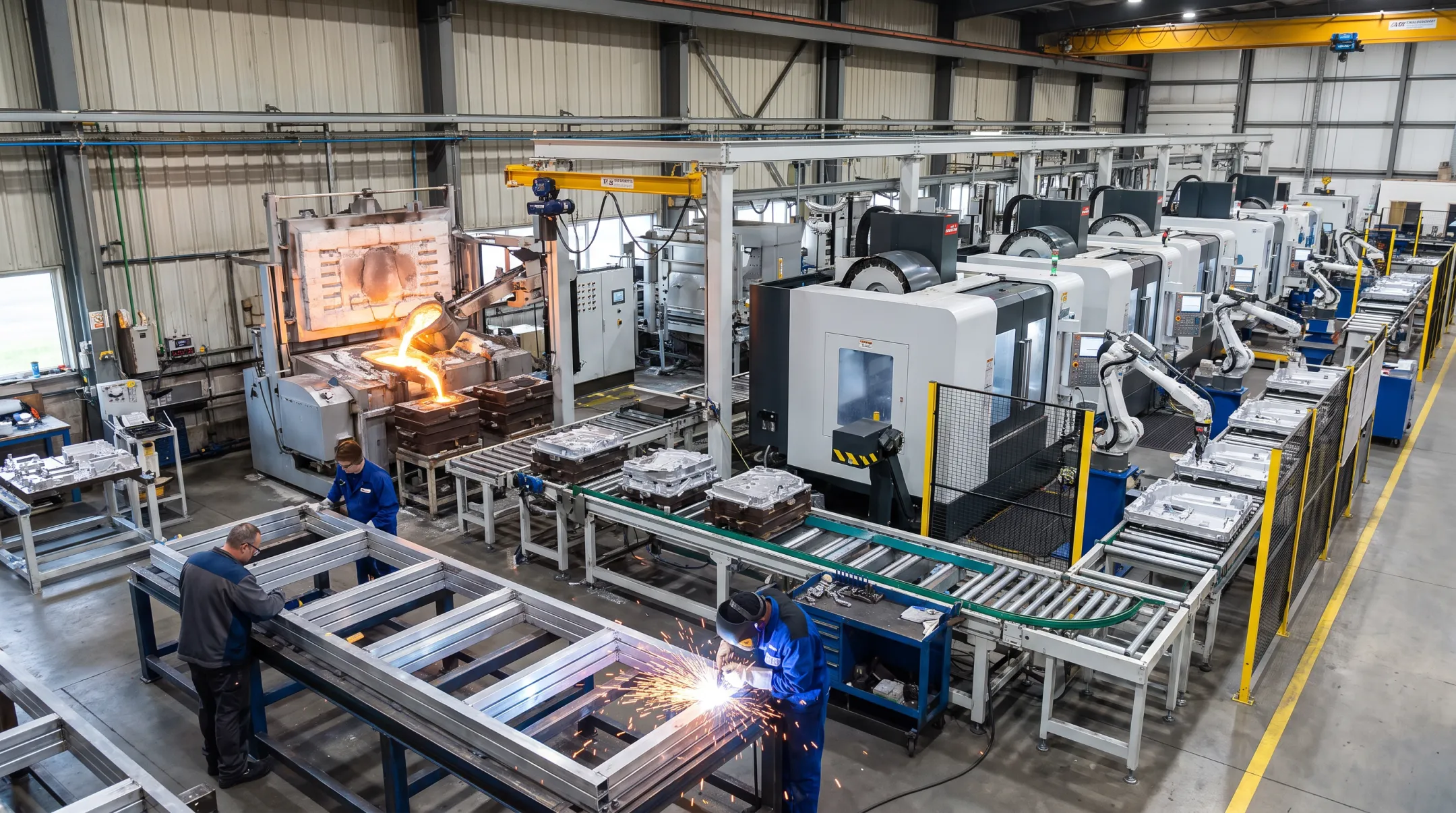

Why Coordination Across Processes Reduces Risk
A partner that handles casting alongside CNC machining, fabrication, and welding assembly cuts down on handoffs between suppliers. Fewer handoffs mean fewer chances for miscommunication on tolerances or specs.
That single-source model is how Krupa Services approaches permanent mold work. The company covers casting, CNC machining, fabrication, and welding assembly, backed by a network of 100+ vetted manufacturing partners for capacity and flexibility.
Casting support also includes:
- Heat-treat and surface-finish options
- Inspection and sampling before shipment
- Documented 9%-15% annualized savings through stronger supplier relationships and lower risk exposure
Before locking in a supplier, request a manufacturability review of your drawing. Compare quotes on total cost, quality documentation, and delivery reliability, not just the piece price on the page.
Frequently Asked Questions
How much does aluminum die casting cost?
Cost depends on tooling complexity, alloy, part size, volume, tolerances, and finishing. Die casting and permanent mold tooling costs differ widely, so request a drawing-based quote.
What is permanent mold casting?
Permanent mold casting pours molten metal into a reusable steel or iron mold. It improves repeatability and spreads tooling cost across production runs, and aluminum is a common choice.
Is permanent mold casting the same as die casting?
Both use reusable metal tooling, but die casting injects metal under high pressure. Permanent mold casting commonly relies on gravity or another lower-pressure filling method instead.
Can you mold aluminum?
Yes. Aluminum can be cast in reusable permanent molds, single-use sand molds, or high-pressure die-casting dies. Alloy, geometry, volume, and performance requirements determine which process fits best.
When should you choose permanent mold casting over sand casting?
Choose permanent mold when repeat production volume can amortize tooling costs and you need better surface finish or repeatability than sand casting offers. Weigh that against part complexity and your initial tooling budget.
What information is needed for a permanent mold casting quote?
Suppliers typically need CAD files, drawings, alloy specifications, quantities, critical tolerances, finish requirements, machining needs, testing requirements, and delivery schedule details.
