That distinction matters more than it sounds. Many engineering teams struggle to choose between semi-solid casting, conventional casting, and forging, because the decision hinges on geometry, strength requirements, defect tolerance, tooling budget, and production volume all at once. Get it wrong, and you either overpay for capability you don't need or underdeliver on a structural requirement.
This guide breaks down how semi-solid processing actually works, how rheocasting, thixocasting, and thixomolding differ, how the process stacks up against forging, and a practical framework for making the call on your next project.
Key Takeaways
- Semi-solid casting uses a partially solidified slurry for complex near-net-shape parts with fewer gas and shrinkage defects.
- Rheocasting, thixocasting, and thixomolding differ mainly in feedstock preparation and injection method.
- Forging wins on directional grain flow and extreme structural loads; semi-solid casting wins on geometric freedom and less machining.
- Let alloy, geometry, load case, volume, and tooling economics drive the choice—then confirm with prototype testing.
Semi-Solid Metal Casting Explained
How the Slurry Behaves
Semi-solid metal (SSM) processing injects a slurry made of near-globular solid particles suspended in a liquid matrix, rather than fully molten metal. That slurry behaves as a non-Newtonian, shear-thinning fluid.
Its resting viscosity runs higher than liquid metal. Applying shear during injection drops that viscosity so the material can fill a die cavity without the turbulence of a full liquid pour, according to a 2018 literature review on semi-solid aluminum alloys.

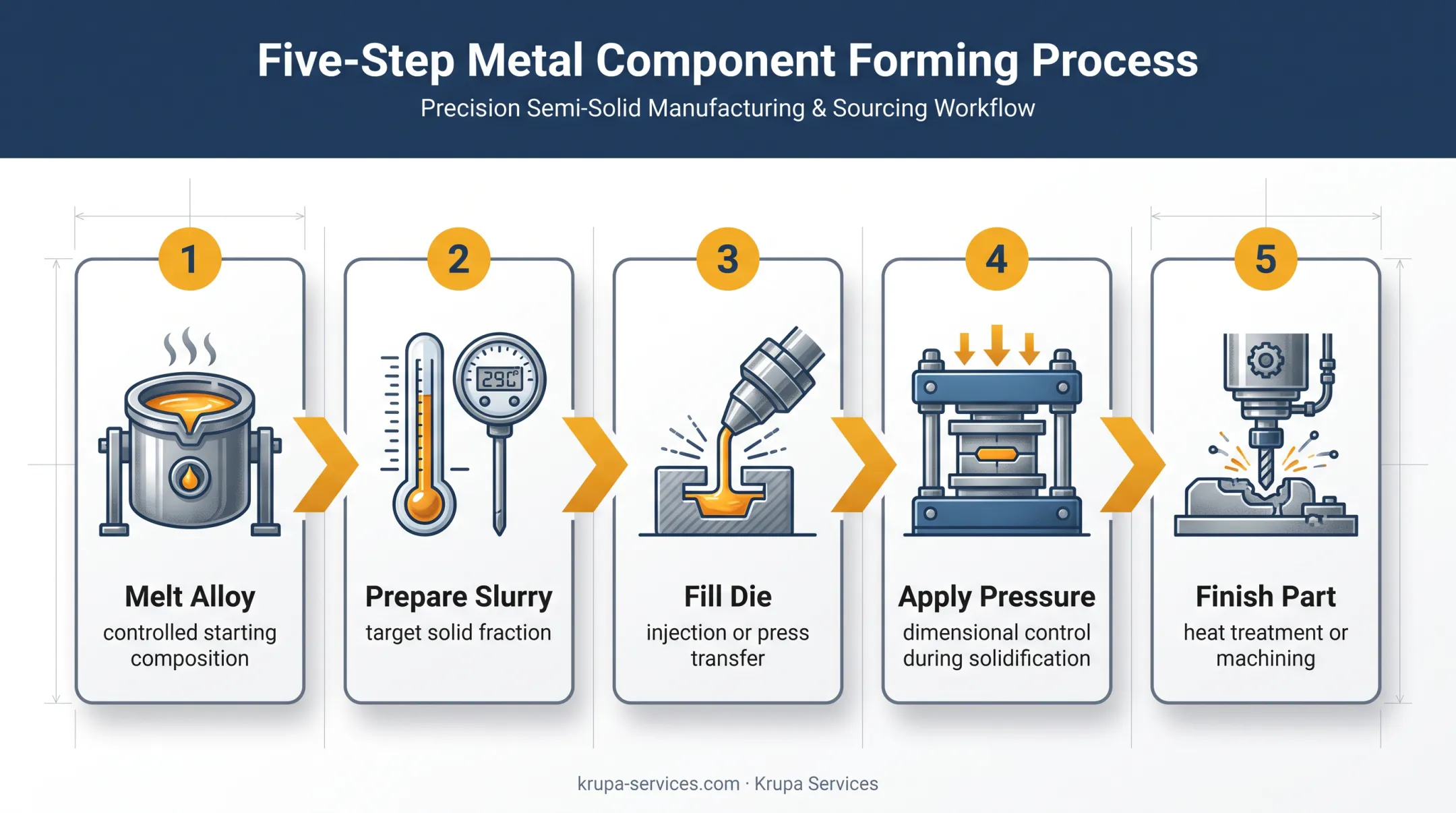

From Melt to Finished Part
The general production sequence looks like this:
- Melt the alloy to a controlled starting composition.
- Prepare the slurry, adjusting temperature until the target solid fraction is reached.
- Fill the die using injection or press-based transfer.
- Apply pressure during solidification to maintain dimensional control.
- Remove the part, then apply heat treatment or machining as required.
Why Controlled Flow Reduces Defects
Because the slurry moves without the splashing and air entrapment common in fully liquid metal, semi-solid parts tend to show far less gas porosity. The same 2018 review describes shrinkage porosity in SSM parts as "virtually absent" and links that low porosity to reliable weldability and heat-treatment response.
It also reports high-cycle fatigue values ranging from 60 to 180 MPa. That range depends heavily on the route, casting parameters, and downstream heat treatment.
A separate 2018 computed-tomography study of near-net A356 aluminum parts found no significant casting defects in the semi-solid sample tested. Defects that did exist concentrated along eutectic grain boundaries rather than throughout the bulk material.
Process Variables That Matter
Repeatability depends on tight control over several inputs:
- Alloy chemistry and cleanliness
- Slurry temperature and solid fraction
- Die temperature and preheat consistency
- Injection speed and applied pressure
- Cooling rate through the die
- Mold and gating design
Drift in any one of these can change fill behavior and part quality. Process documentation matters as much as the equipment itself.
Aluminum and magnesium alloys dominate current SSM applications. Suitability still needs confirmation against the mechanical, thermal, corrosion, and pressure-tightness specs the part has to meet.
Main Semi-Solid Casting Processes
Three routes account for most commercial semi-solid production, and they differ mainly in how the slurry gets made.
Rheocasting
Rheocasting conditions and cools molten metal into a semi-solid state in situ, then transfers it directly to the shot sleeve for injection. Solid fractions typically run 10-30%.
One documented variant, gas-induced semi-solid (GISS) processing, bubbles nitrogen through a porous graphite body for 5-20 seconds. The melt reaches roughly 5% solid fraction in the ladle and 25-30% by the time it hits the shot sleeve.
Because it works from standard melt stock, rheocasting avoids the extra feedstock-preparation step that other routes require.
Thixocasting
Thixocasting starts with a preconditioned billet manufactured with a globular or rosette-like internal structure. The billet is reheated into the semi-solid range (typically 50-60% solid fraction) before injection or pressing into the die.
Billet quality and reheating uniformity become critical variables. The specialized billet material also adds a cost layer that rheocasting doesn't carry.
Thixomolding
Thixomolding serves magnesium alloys almost exclusively, using AZ91D and AM60B as common grades.
Instead of a billet, the process feeds magnesium chips into a heated barrel under an argon atmosphere. A rotating screw then works the material into a slurry and propels it into a preheated mold, similar in mechanics to plastic injection molding.

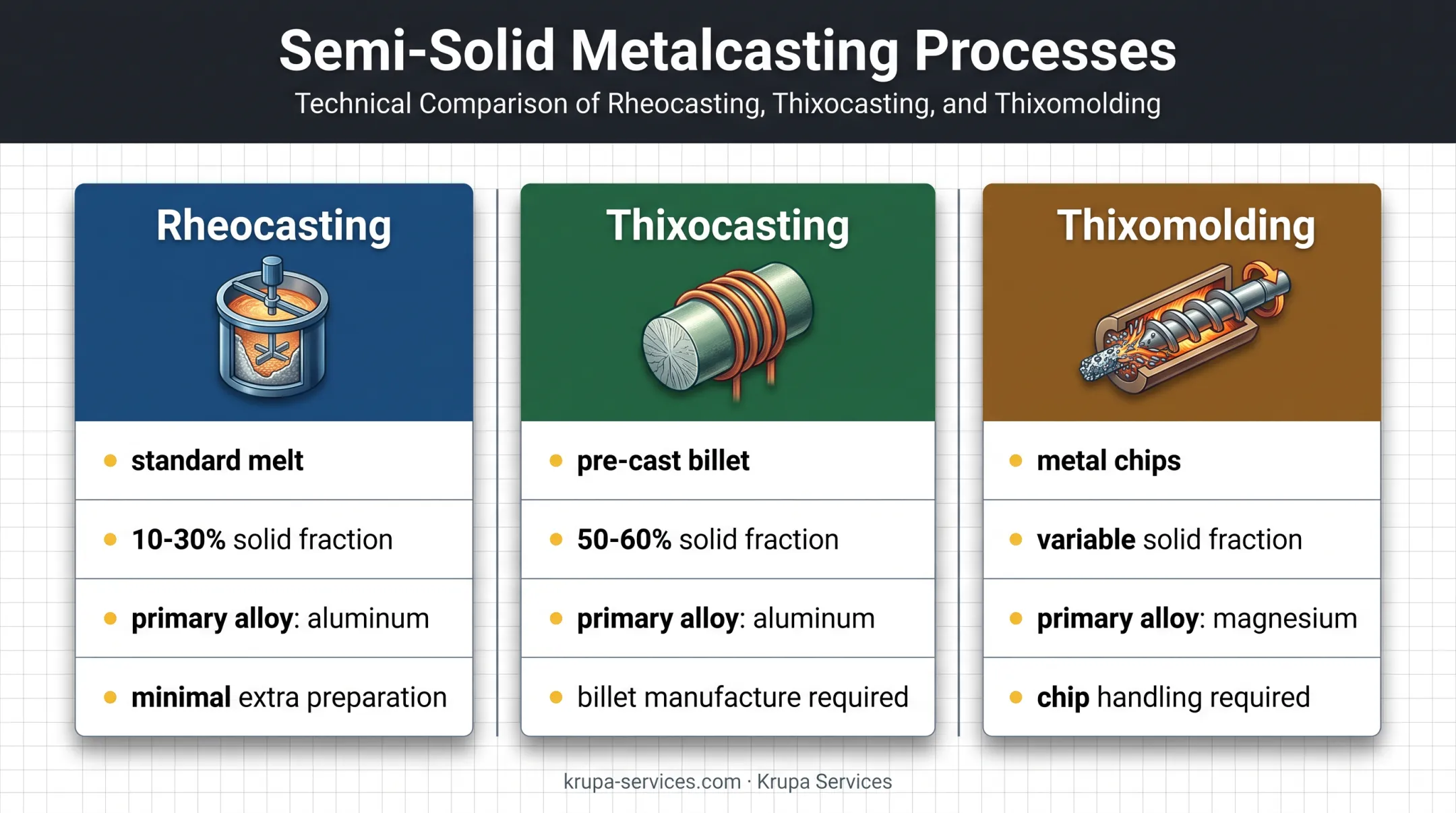

Comparing the Three Routes
| Factor | Rheocasting | Thixocasting | Thixomolding |
|---|---|---|---|
| Feedstock | Standard melt | Pre-cast billet | Metal chips |
| Typical solid fraction | 10-30% | 50-60% | Variable |
| Primary alloys | Aluminum | Aluminum | Magnesium |
| Extra prep step | Minimal | Billet manufacture | Chip handling |
| Cost driver | Process control | Billet cost | Equipment/screw wear |
Industry terminology can blur these lines. "Semi-solid casting," "semi-solid die casting," and "semi-solid metal processing" often get used interchangeably, but the actual equipment and route can differ significantly between suppliers. Always confirm the specific process, temperature range, and solid fraction with the manufacturer rather than assuming based on the label alone.
Semi-Solid Casting vs. Forging
Forging plastically deforms heated (or sometimes cold) metal under compressive force. That differs from semi-solid casting, where material fills a die and solidifies instead of being forced into shape by a hammer or press.
Geometry and Design Freedom
Semi-solid casting handles complex geometries well, including:
- Thin walls
- Integrated bosses and ribs
- Internal features that would otherwise need multiple forging ops or heavy machining
Forging generally favors simpler, load-oriented shapes. Parts often still need flash trimming or machining afterward.
Mechanical Performance
The Forging Industry Association's design guide notes that forging refines grain structure and develops directional grain flow. That supports impact toughness, fracture toughness, and fatigue strength in demanding applications—a real edge for parts under repeated or extreme structural load.
Semi-solid casting does not create that directional grain flow. It does, however, carry little gas or shrinkage porosity versus conventional casting. With the right alloy, process settings, and heat treatment, well-controlled semi-solid parts still deliver strong, consistent mechanical performance.
Neither process is universally stronger. The better choice depends on the specific part and load case.

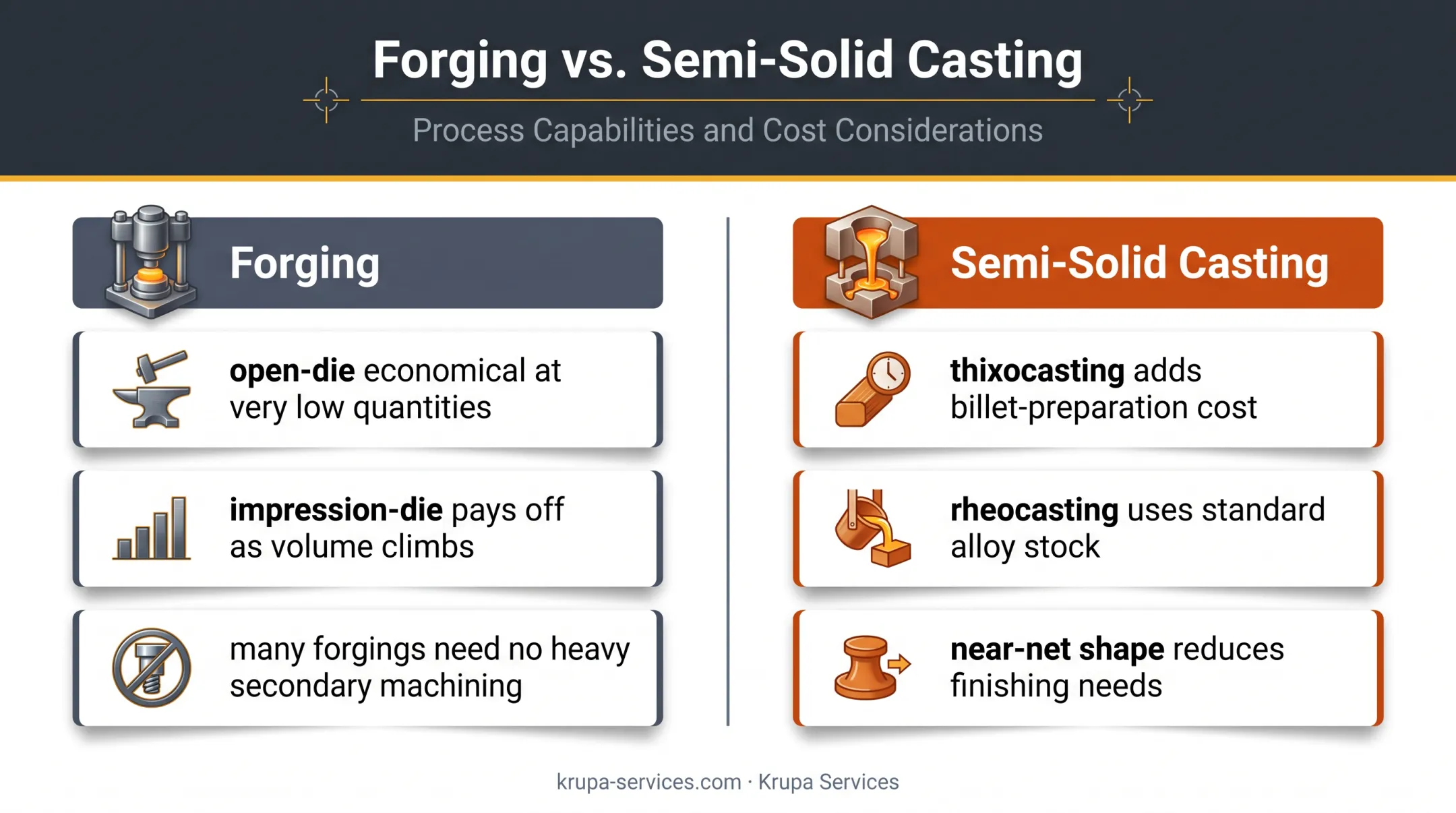

Cost, Tooling, and Volume
- Forging: Open-die work stays economical at very low quantities; impression-die forging pays off as volume climbs, per FIA guidance.
- Semi-solid casting: Thixocasting adds billet-preparation cost; rheocasting avoids that step by working from standard alloy stock.
- Machining: FIA notes many forgings enter service without heavy secondary machining; near-net-shape semi-solid parts cut finishing needs in a similar way.
Tooling spend and per-part cost move separately. Cheap tooling with high scrap or heavy machining can still cost more at volume than pricier tooling with minimal finishing—whether you forge or cast semi-solid.
Making the Call
Semi-solid casting tends to fit better when:
- The part has complex geometry or integrated features
- Thin sections or pressure-tight sealing surfaces are required
- Machining time needs to come down
- The application doesn't demand extreme directional strength
Forging tends to fit better when:
- The part is safety-critical and highly loaded
- Directional strength and fatigue resistance drive performance
- Geometry stays relatively simple to moderate
| Consideration | Favors Semi-Solid Casting | Favors Forging |
|---|---|---|
| Geometry | Complex, thin-walled | Simple to moderate |
| Load path | Multi-directional, moderate | Highly directional, extreme |
| Pressure tightness | Required | Not primary concern |
| Fatigue demand | Moderate | High |
| Tooling budget | Moderate | Varies with volume |
Validate the shortlist against real load cases, geometry constraints, and target volume before you lock production tooling.
Applications, Quality Checks, and Process Selection
Where Each Process Shows Up
Automotive and off-highway: Semi-solid aluminum parts show up in structural automotive components. Forged parts cover transmission shafts, connecting rods, and gear shift forks where load and fatigue resistance matter.
Renewable energy: Wind power hardware, including main shafts, pitch and yaw drive components, tower flanges, and gearboxes, leans on forging for structural reliability.
Industrial machinery and mining: Heavy forged shafts and components serve crushing and material-handling equipment, while cast components cover pump bodies and housings.
Aerospace-support components: Both processes appear here, but qualification requirements are strict; alloy and process must match the specific certification the part needs.
Those application patterns set the inspection and documentation bar you plan next.
Quality Assurance Steps Worth Planning For
- Incoming alloy verification against spec
- Process parameter logging (temperature, pressure, injection speed)
- Dimensional inspection against drawings
- Porosity/internal-defect inspection, referencing standards such as ASTM E155 for castings or ASTM A388 for forgings
- Leak or pressure testing per methods like ASTM E2930
- Tensile or fatigue testing tied to the load case
- First-article validation following frameworks such as AS9102
The right inspection plan follows the part's risk profile, not a generic checklist.
Once the quality bar is clear, package the technical inputs suppliers need to quote and route the work.
Buyer Checklist Before You Request a Quote
- 2D drawings and 3D models
- Alloy and heat-treatment requirements
- Annual and batch quantities
- Critical dimensions and tolerances
- Load cases and pressure requirements
- Surface-finish expectations
- Allowable defect limits
- Required documentation and traceability
Krupa Services, based in Cary, North Carolina, coordinates manufacturing and sourcing for projects like these. Capabilities span CNC machining, fabrication, welding assembly, casting, and forging for automotive, renewable energy, mining, and industrial machinery work.
For a project that specifically needs semi-solid processing, confirm the exact route and equipment capability with the manufacturer handling that portion of the work.
Frequently Asked Questions
What are the main types of metal casting?
The main categories include expendable-mold methods (sand, investment casting), permanent-mold methods, die casting, centrifugal casting, and semi-solid casting. Some processes overlap when you group by mold type versus metal-delivery method.
What is the difference between true centrifugal casting and semicentrifugal casting?
True centrifugal casting rotates a hollow mold to force metal against the wall, producing tubular parts without a core. Semicentrifugal casting fills the mold through a central sprue while rotating, improving feed for parts like wheels or disks.
What is semi-solid metal casting?
Semi-solid metal casting injects or presses a partially solidified metal slurry into a die instead of fully molten metal. Controlled slurry flow typically cuts gas and shrinkage porosity and supports near-net-shape, dimensionally consistent parts.
Is semi-solid casting stronger than forging?
Neither process is universally stronger. Forging typically wins on directional grain flow and extreme structural loads. Well-controlled semi-solid casting can still deliver strong, complex parts with low porosity and less machining.
When should you choose semi-solid casting instead of forging?
Choose semi-solid casting for complex geometries, integrated features, thin walls, or pressure-tight designs where reduced machining matters. Confirm alloy compatibility and validate mechanical performance through prototype testing before committing to production.
