Introduction
Casting a part starts with one question: what's the mold made of? Plastic molds give engineers, fabricators, and production teams a reusable way to reproduce parts in resin, plaster, concrete, wax, and select low-temperature casting compounds.
The hard part is choosing the right mold. Many teams struggle to pick one that survives the casting material, releases the part cleanly, holds the required detail, and still makes financial sense for the production run size.
Get the mold wrong, and you'll deal with stuck parts, warped surfaces, or a cavity that degrades after a handful of pours.
This guide covers mold types and materials, the step-by-step casting workflow, design requirements, resin compatibility, maintenance, and how to choose between rigid and flexible systems for your specific project.
Key Takeaways
- Plastic molds work well for prototypes, decorative parts, tooling patterns, and short production runs.
- Rigid plastics deliver dimensional stability; flexible materials handle undercuts and simplify demolding.
- Success hinges on mold design, release-agent selection, venting, and controlled curing.
- Complex geometry or tight tolerances often call for professional mold fabrication over DIY setups.
What Are Plastic Molds for Casting?
A plastic casting mold is a shaped cavity, built from rigid or flexible polymer material, into which you pour a liquid or flowable compound. The material cures or solidifies inside the cavity, then you demold it to reveal the finished part.
This differs from injection molding. Casting relies on gravity pouring or low-pressure filling at or near room temperature. Injection molding forces molten polymer into a mold under high pressure and heat. The tooling, cycle times, and cost structures are entirely different.
Basic Mold Components
Every casting mold, regardless of material, shares a few core features:
- Cavity – the negative space that shapes the part
- Parting line – where mold sections separate for demolding
- Sprue or pour opening – where the casting material enters
- Vents – channels that let trapped air escape
- Registration features – pins or keys that align multi-piece molds
Where These Molds Get Used
Plastic molds are common in prototyping, product development, and low-volume component production across industrial and specialty manufacturing.

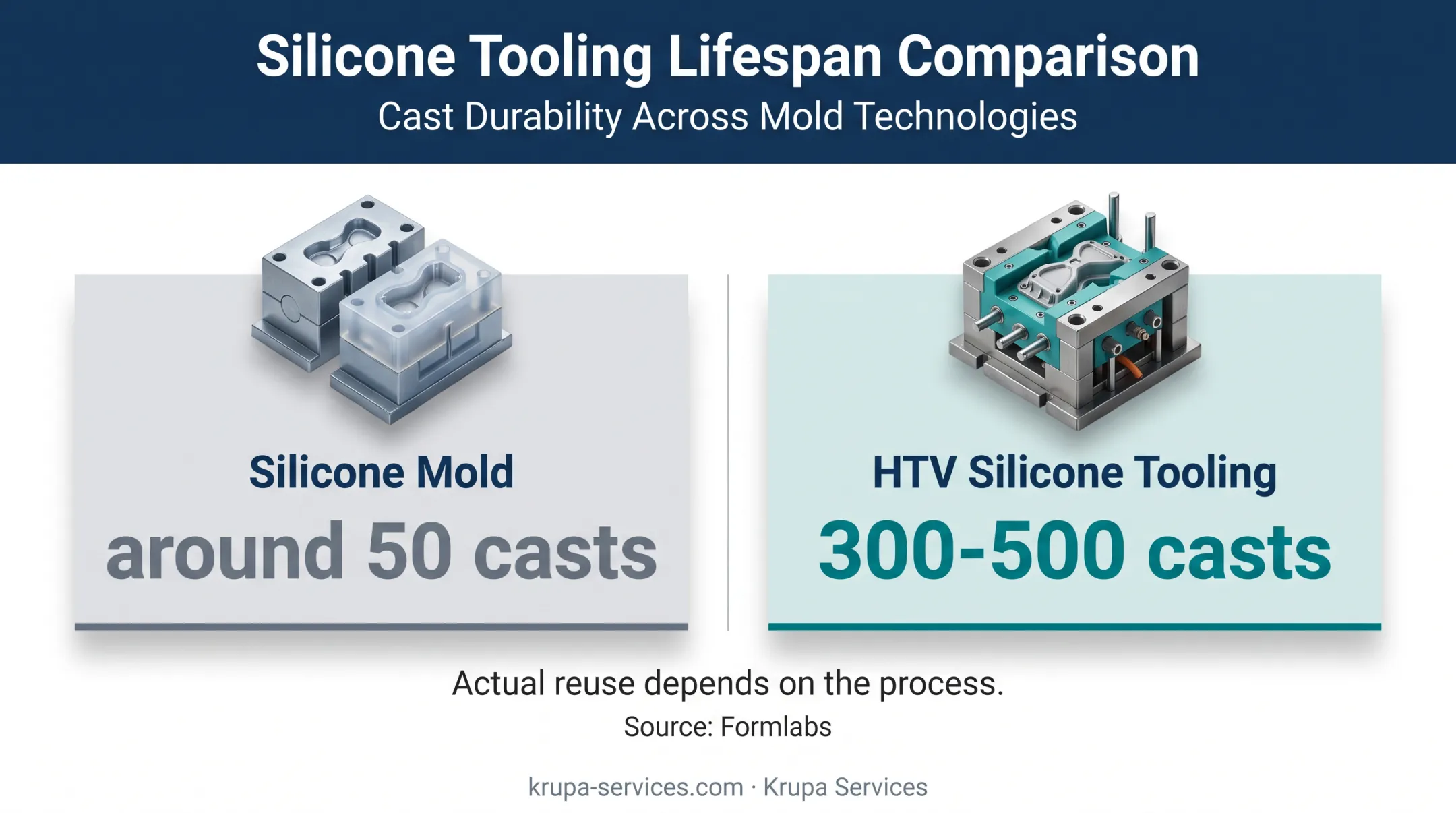

Vacuum casting is one example: you pour liquid resin into silicone mold halves under vacuum. Formlabs notes that a single silicone mold can typically produce around 50 casts, while HTV silicone tooling can extend to 300-500 casts, depending on the process.
Mold choice directly affects dimensional accuracy, surface texture, demolding effort, and how much post-processing your part needs afterward. Before committing to any mold material, confirm it's chemically compatible with your casting compound and can handle its cure temperature, shrinkage, and the exothermic heat many resins release while curing.
Types of Plastic Molds and Materials
Not every plastic behaves the same way inside a mold shop. Some serve as direct casting cavities. Others act as reusable tooling or master patterns for building a secondary mold.
Rigid Engineering Plastics
Rigid plastics work well when you need a stable, low-flex cavity:
- HDPE – abrasion-resistant and chemically resistant, low moisture absorption, easy to machine
- Nylon – strong and stiff, but absorbs moisture, which can shift dimensions in wet-service applications
- Acrylic – optically clear, with cast acrylic offering better chemical resistance than extruded sheet
- Polycarbonate – highly impact resistant, even at low temperatures
Before you commit to a grade, check its technical data sheet. Properties like heat-deflection temperature and chemical resistance vary meaningfully by brand and formulation, so don't assume one supplier's nylon behaves like another's.
Silicone and Flexible Molds
Silicone and other elastomeric materials dominate complex-geometry casting for one reason: they flex during demolding, which lets you pull parts with undercuts that would lock a rigid mold in place.
Platinum-cure silicones typically sit in the Shore 30s to 60A range. Key working traits:
- Pot life and full cure vary by product—some set in under an hour, others need up to a day
- Many cast plaster, concrete, wax, urethane, epoxy, or polyester resins without a release agent
- Tin-cure silicone has a shorter library life than platinum-cure formulations
3D-Printed Molds and Patterns
3D-printed molds suit prototypes and short runs, but they come with caveats:
- Surface finish – SLA prints run smooth; FDM layer lines can transfer into cast parts
- Sealing – uncured photopolymer residue can inhibit silicone cure, so wash thoroughly and post-cure before pouring silicone into a printed pattern
- Heat validation – confirm the resin's heat resistance before assuming it'll hold up under cure exotherm
One-Piece vs. Multi-Piece Molds
Simple open shapes work fine in a one-piece mold. Anything with undercuts, enclosed cavities, or fine surface detail usually needs a multi-piece design with a clear parting line and draft built in.
| Mold Type | Flexibility | Detail Reproduction | Typical Reuse | Best For |
|---|---|---|---|---|
| Rigid plastic | Low | High (smooth surfaces) | Moderate to high | Stable geometry, no undercuts |
| Silicone | High | High (fine texture) | Varies by cure system | Undercuts, complex shapes |
| 3D-printed pattern | Low | Depends on layer height | Low to moderate | Prototypes, master patterns |
Avoid quoting a fixed number of reuses for any mold type. Actual lifespan depends on the specific material, casting compound, and how carefully you demold each part.
How to Use Plastic Molds for Casting

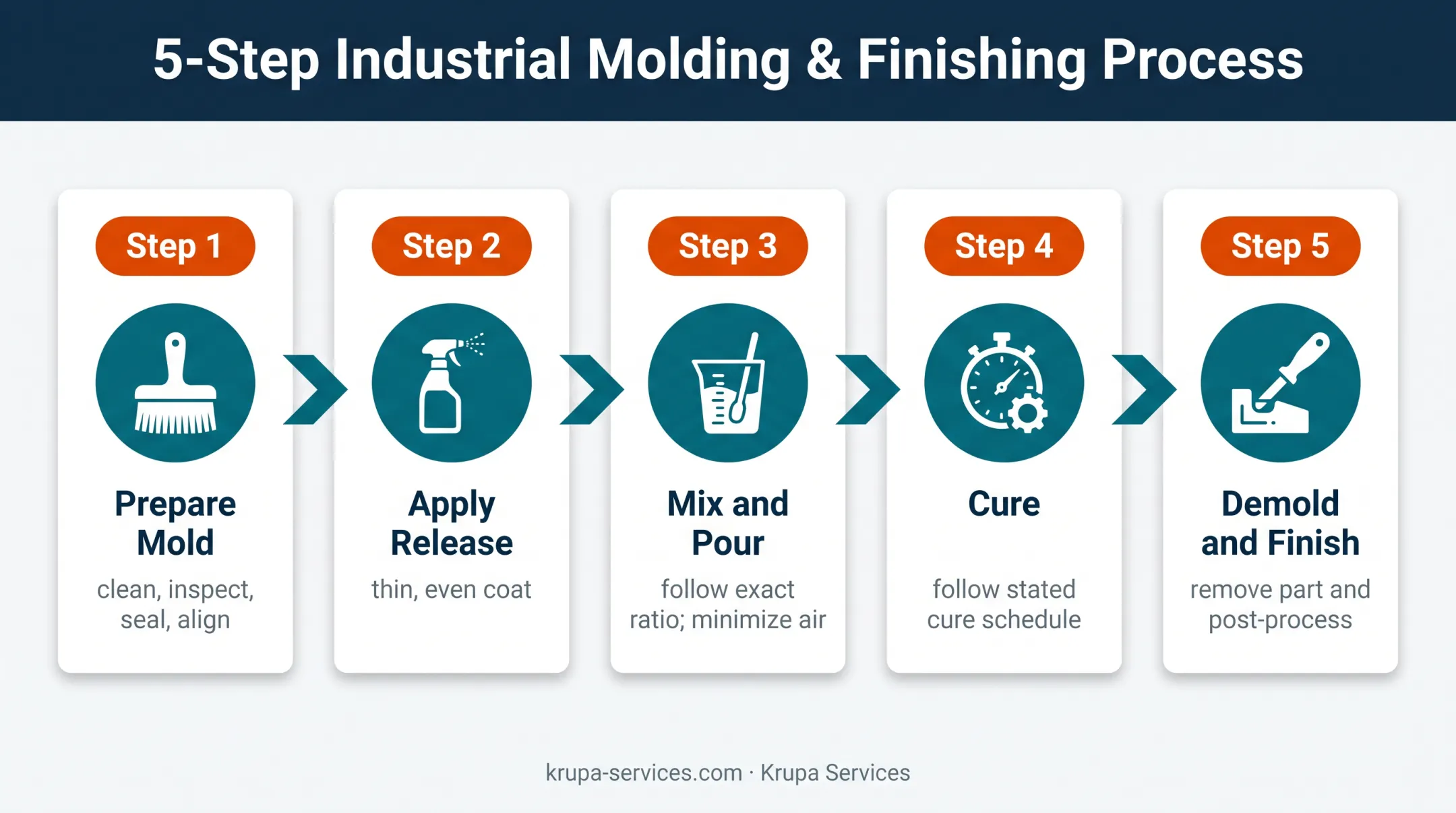

The casting workflow follows a consistent sequence: prep the mold, apply release, mix and pour, cure, then demold and finish.
Preparing the Mold
Before any casting material touches the cavity:
- Clean out dust, debris, and prior release residue
- Inspect seams, vents, and parting lines for damage
- Seal porous or 3D-printed surfaces that could trap moisture or off-gas
- Confirm registration features align cleanly on multi-piece molds
Release Agent Selection
Release needs depend on the material pairing. Silicone against most resins usually needs no release since silicone is naturally non-stick, though a light coat can extend mold life for repeated pours.
Match release to the pairing:
- Silicone against silicone requires release, or the two surfaces will fuse together
- Rigid plastic and polyurethane molds typically need release when casting resin
- Seal porous mold surfaces before the first pour so moisture and off-gassing do not spoil the cast
One warning: pooled or excess release liquid can leave texture on your part's surface. Apply a thin, even coat.
Mixing and Pouring
Accurate ratios matter more than most people expect. Some casting resins mix at simple 1:1 ratios by volume; others require precise weight ratios. Follow the supplier's technical bulletin exactly.
To minimize trapped air:
- Pour from a consistent height into the lowest point of the cavity
- Use vacuum degassing for higher-viscosity mixes prone to bubbles
- Apply vibration only when the mold and material tolerate it
After the pour, follow the stated cure schedule rather than guessing at demold timing.
Design-for-Casting Requirements
Good part design prevents most defects before they start:
- Add draft angles so the part releases without dragging
- Round sharp internal corners to reduce stress and trapped air
- Keep wall thickness consistent to avoid warping
- Place vents at the highest points of the cavity
Troubleshooting Common Defects
| Defect | Likely Cause | Fix |
|---|---|---|
| Sticking | Wrong or missing release | Match release to material pair |
| Incomplete fill | Pour too slow, poor venting | Add vents, adjust pour technique |
| Bubbles | No degassing, viscous mix | Vacuum or pressure cast |
| Warping | Uneven wall thickness | Redesign for consistent walls |
How to Choose the Right Plastic Mold
Start With the Casting Material
Identify what you're pouring first: epoxy or polyurethane resin, plaster, concrete, wax, or a low-melting metal. Each has different heat, chemical, and shrinkage demands. Check compatibility and heat tolerance on the mold material's data sheet before you cut or print anything.
Match Mold Format to Geometry and Volume
- Simple, open shapes → one-piece rigid or flexible mold
- Enclosed or detailed forms → multi-part mold with clear parting lines
- Heavy undercuts → flexible silicone or urethane system
Balance Cost Against Accuracy and Reuse
Higher accuracy and finer surface finish usually mean more tooling time and cost upfront. Weigh that against:
- Expected production volume
- Maintenance needs over the mold's life
- Cost to replace a mold that fails mid-run
Whatever mold you choose, have the design or a supplier confirm:
- Shrinkage allowances
- Draft angles
- Parting-line visibility
- Vent and gate placement
- Post-cast machining or finishing needs
When to Bring in a Manufacturing Partner
Improvised molds work fine for one-off prototypes. But for repeatable industrial parts, complex geometry, or demanding tolerances, an improvised setup starts costing you more in scrapped parts than a properly engineered mold would have cost upfront.
That is usually the point to bring in a manufacturing partner. Krupa Services supports casting and tooling development alongside CNC machining and metal fabrication, and sources plastic and rubber components through a network of more than 100 vetted manufacturers.
For teams that need precision parts plus casting or fabrication support, coordinated quoting and technical consultation can cut a lot of trial and error versus building tooling in-house from scratch.
Conclusion
Plastic molds for casting earn their keep on prototypes, custom parts, and short production runs, but only when the mold material and design actually match the casting compound and end use.
Before scaling any project, run through these decision factors:
- Material compatibility
- Cure temperature
- Part geometry
- Flexibility and accuracy
- Surface finish
- Expected volume, durability, and total cost
Always validate a new mold with a controlled test casting before committing to a full production run. If your part carries demanding performance or tolerance requirements, get engineering input early rather than after the first batch fails.
Frequently Asked Questions
Can you cast resin in a plastic mold?
Yes, as long as the plastic is chemically compatible with the resin, heat-resistant enough for the cure exotherm, properly prepped, and paired with a suitable release agent. Skipping any of these checks usually causes sticking or surface defects.
What type of plastic is best for casting molds?
It depends on your project. Rigid engineering plastics suit stable, undercut-free geometry; 3D-printed polymers work for prototypes and patterns; flexible silicone handles complex shapes and repeated demolding best.
Do you need mold release for plastic molds?
Often, yes, especially for rigid plastic or polyurethane molds casting resin. Silicone-to-resin pairings frequently need none. Test compatibility first since excess or unsuitable release can damage surface finish or interfere with curing.
How many times can a plastic mold be reused?
There's no universal number. Reuse depends on the mold material, casting compound, demolding technique, and how well you maintain the mold between pours. Check your specific material's manufacturer guidance rather than relying on general estimates.
Are plastic molds better than silicone molds for casting?
Neither is universally "better." Rigid plastic molds offer more dimensional stability for simple geometry; silicone flexes to release undercuts and complex shapes. Choose based on your part's geometry and production needs.
What causes resin to stick to a plastic mold?
Common causes include incompatible materials, missing or wrong release agent, rough or porous surfaces, undercuts without adequate release, or insufficient cure time. Start troubleshooting by checking your release agent against the material pairing.
