Introduction
Aluminum lost wax casting is a precision manufacturing process that uses a sacrificial wax pattern coated in ceramic to shape molten aluminum into finished components. In supplier conversations, the term often surfaces without a clear explanation of what actually happens on the shop floor.
This guide is for engineers, designers, procurement professionals, and manufacturers evaluating aluminum components for automotive, aerospace, industrial machinery, renewable energy, and construction applications.
Many teams struggle with a false choice: treat lost wax casting as a cure-all for complex geometry, or dismiss it as outdated. Neither is accurate.
We'll walk through how the process actually works, where it delivers real value, what affects quality outcomes, and when a different manufacturing route makes more sense.
Key Takeaways
- Lost wax casting replaces a wax pattern with molten aluminum in a one-time ceramic shell for near-net-shape parts.
- Best fit for complex geometries, thin sections, and low-to-medium production runs.
- Quality hinges on alloy choice, pattern accuracy, shell integrity, gating design, and melt control.
- Let volume, tolerance, part size, and budget drive selection—not design complexity alone.
What Is Aluminum Lost Wax Casting and Why Is It Used?
Aluminum lost wax casting, sometimes called aluminum investment casting or precision casting, starts with a wax replica of the finished part. That replica gets coated in refractory ceramic, the wax is melted out, and molten aluminum fills the resulting cavity.
You get a detailed aluminum part with complex external and internal geometry—often with far less machining or assembly than other methods require.
How It Compares to Sand Casting and Die Casting
The three processes solve different problems:
| Factor | Lost Wax (Investment) | Sand Casting | Die Casting |
|---|---|---|---|
| Mold type | Expendable ceramic shell | Consumed sand mold, reusable pattern | Reusable metal die |
| Tooling investment | Moderate; wax die or printed patterns | Lower upfront cost | High upfront cost |
| Best production volume | Low-to-medium | Prototypes, low volume, large parts | High volume |
| Surface finish | Fine detail, better as-cast finish | Rougher as-cast finish | Smooth, but tooling-dependent |
| Secondary operations | Gate removal, limited machining | Often more fettling and machining | Often minimal for as-cast features |
According to the Investment Casting Institute's process overview, when production volume is too low to justify a wax injection die, foundries often turn to printed, stereolithographic, or machined patterns instead. That flexibility is part of why the process works well for prototypes and proprietary parts.
Why Aluminum Specifically
Aluminum brings a specific set of properties to this process:
- Low density — roughly one-third the density of steel, according to NIST material data
- Corrosion resistance — strong when properly alloyed and treated
- Electrical and thermal conductivity — high relative to weight
- Recyclability — supports sustainability-driven procurement policies
- Multiple alloy families — flexibility for strength, ductility, or machinability needs
That mix is why aluminum lost wax casting shows up so often in weight-sensitive applications. The process typically earns its keep when you need:
- Intricate shapes, or thin / hard-to-machine features
- Small-to-medium production runs
- Several components consolidated into one casting
How the Aluminum Lost Wax Casting Process Works

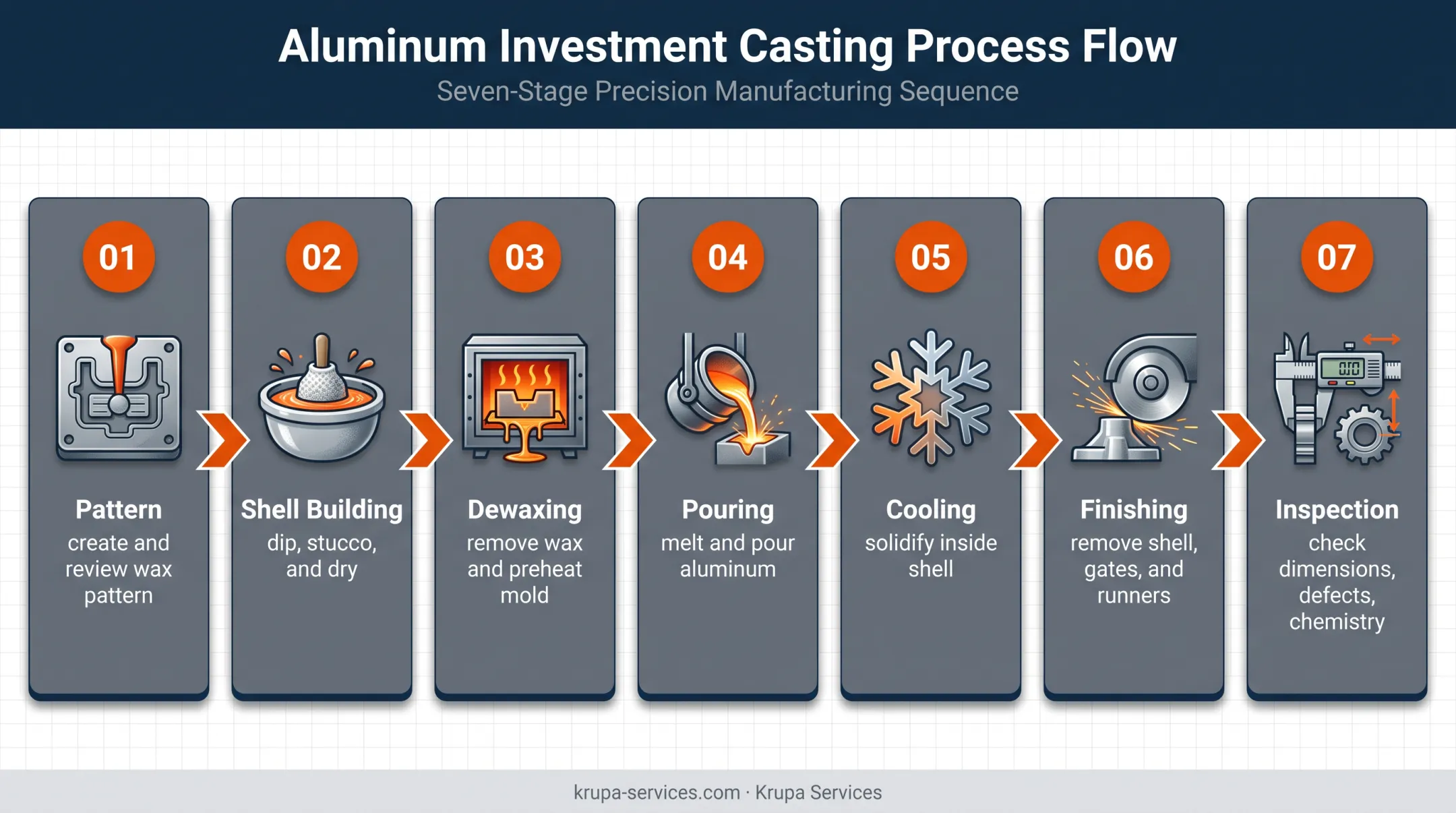

Aluminum lost wax casting runs from digital design through pattern production, shell building, dewaxing, pouring, cooling, and finishing. Each stage adds variables that shape dimensional accuracy, surface quality, and defect risk.
Step 1: Create and Review the Wax Pattern
The wax pattern reproduces the finished component's geometry. Depending on volume and complexity, teams may use injection tooling, 3D-printed patterns, or machined masters.
Design allowances matter here:
- Metal shrinkage compensation
- Machining stock on critical surfaces
- Draft angles where needed
- Wall thickness and radii that avoid stress concentrations
- Core placement and access for inspection later
Step 2: Assemble Patterns and Build the Ceramic Shell
Individual wax patterns attach to a central sprue, forming a "tree." Gating and feeding paths on that tree control how aluminum flows and solidifies. Poor gating design is a common source of shrinkage or misrun defects.
The tree then goes through repeated cycles of:
- Slurry dipping — coating the tree in ceramic slurry
- Stuccoing — applying fine refractory sand to build shell thickness
- Drying — allowing each layer to cure before the next dip
- Repeating until the shell reaches sufficient strength and permeability
Step 3: Remove the Wax and Prepare the Mold
Dewaxing happens through controlled heating or autoclave methods. Complete wax removal matters because residual wax can cause defects during pouring, and shell integrity has to hold up under thermal shock.
Mold preheating comes next. Shell temperature, ceramic condition, and timing determine how fully the aluminum fills the cavity and how clean the final surface is.
Step 4: Melt and Pour the Aluminum
Melt cleanliness and temperature control are non-negotiable at this stage. Pouring typically happens by gravity, though vacuum, counter-gravity, or centrifugal methods exist for specific applications.
Watch for these defect triggers:
- Turbulence during pouring
- Oxidation from extended exposure to air
- Air entrapment in the cavity
- Inadequate feeding as the metal solidifies
- Premature solidification before the mold fully fills
Any of these can produce porosity, inclusions, misruns, cold shuts, or shrinkage cavities. Confirm pour temperature with your casting partner—it varies by alloy and foundry specification.
Step 5: Cool, Remove the Shell, and Finish
Once the aluminum solidifies, the ceramic shell gets mechanically broken away. Gates and runners are cut off, and the part moves into cleaning, heat treatment (where specified), and finishing.
Final quality checks typically include:
- Dimensional inspection against the engineering drawing
- Visual examination for surface defects
- Non-destructive testing where required
- Alloy chemistry or hardness verification
- Documentation review
Where Aluminum Lost Wax Casting Is Applied and What Affects Results
Aluminum lost wax casting is used across aerospace, automotive, renewable energy, industrial machinery, and construction sectors, wherever lightweight, detailed components add value. Confirm alloy and service-environment suitability for your specific application rather than assuming a generic fit.
In a product lifecycle, the process tends to appear during:
- Prototype development and design validation
- Low-to-medium volume production runs
- Replacement or proprietary parts with no existing tooling
- Component consolidation, where several machined or assembled parts become one casting
Factors That Affect Casting Results
- Inputs and materials — alloy chemistry, recycled versus primary feedstock, wax type, ceramic slurry, and core materials
- Operating conditions — melt temperature, shell preheat, pouring speed, cooling rate, and humidity
- Equipment dependencies — wax tooling or printers, dewaxing equipment, furnaces, filtration systems, and inspection tools
- Scale and throughput — part size, casting weight, batch quantity, and whether the job is recurring or one-time
- Safety and compliance — molten-metal handling, ceramic dust control, ventilation, PPE, and material certifications
Rely on foundry-specific data for operating conditions rather than generic assumptions.
Evaluating a Supplier
Before committing to a lost wax casting supplier, review their:
- Alloy experience — have they worked with your specific aluminum grade?
- Design-for-casting support — can they flag geometry issues before tooling starts?
- Process controls — do they document melt and shell parameters?
- Inspection capacity — dimensional, NDT, and metallurgical verification
- Lead time and secondary operation coordination — machining, heat treatment, finishing
Krupa Services works across aerospace, automotive, renewable energy, industrial machinery, construction, and related sectors, coordinating casting and precision metal-component sourcing against these evaluation points. Before you commit, ask any partner for documented alloy experience, process controls, and inspection capacity on your grade and geometry.
Common Issues and When Lost Wax Casting May Not Be Appropriate
Lost wax casting solves many aluminum part challenges, but it has clear failure modes and natural limits. Knowing both helps you avoid costly surprises.
Common Defects and Likely Causes
| Defect | Likely Cause |
|---|---|
| Incomplete filling | Low mold permeability, low metal/mold temperature |
| Porosity | Dissolved gas, turbulence, out-gassing binders |
| Shrinkage | Inadequate feeding, unfavorable thermal geometry |
| Inclusions | Oxidation, contaminated melt |
| Dimensional variation | Wax distortion, shell shrinkage inconsistency |
| Cold shuts | Low pour temperature, poor gating design |
Clearing Up Misconceptions
A few assumptions deserve pushback:
- Lost wax casting does not eliminate all machining — critical mating surfaces often still need finishing work.
- Results aren't identical across every alloy or geometry — thin walls that work in one alloy may struggle in another.
- Not every internal passage is automatically manufacturable — design review still matters, even with this process's flexibility.

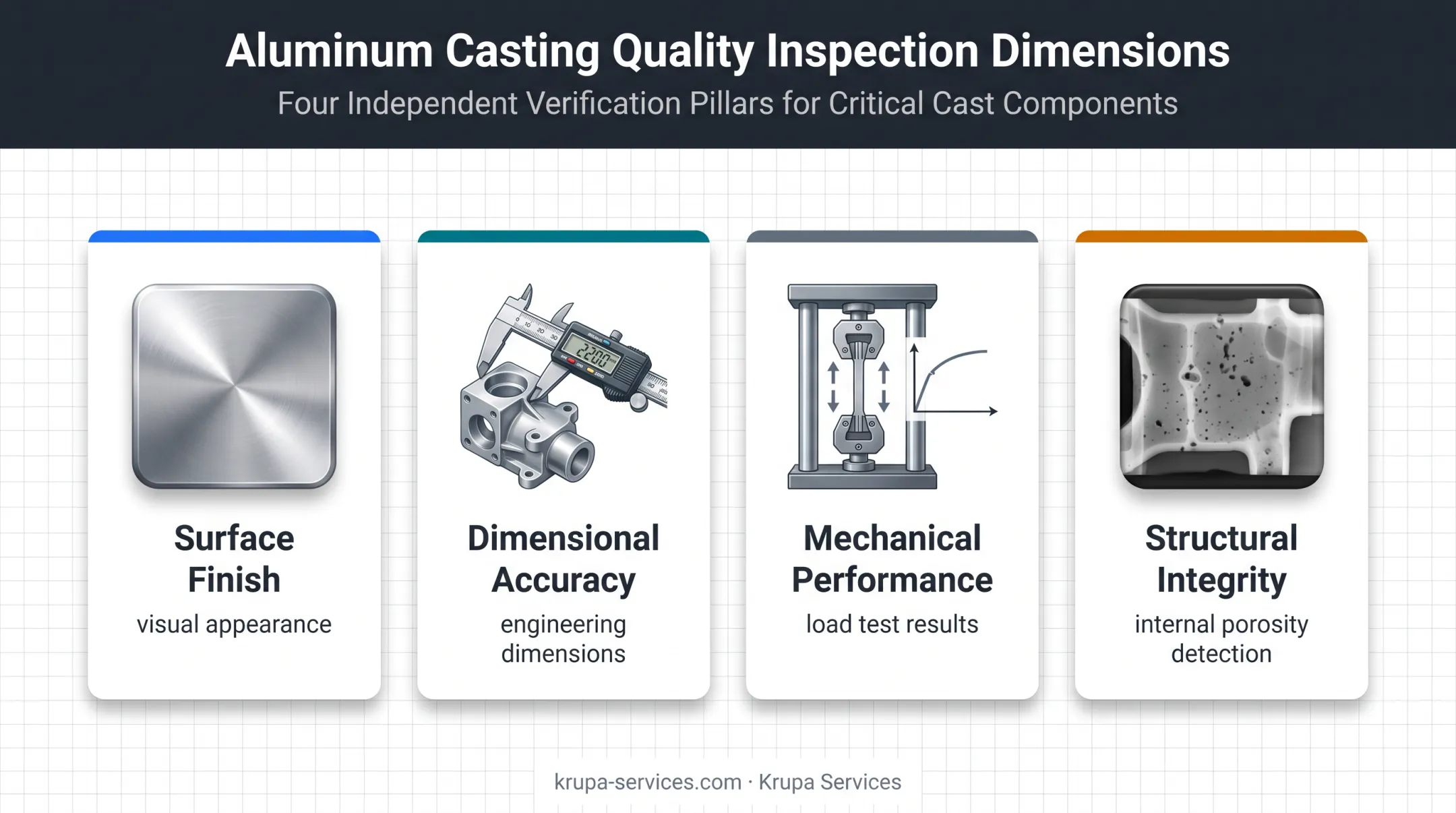

Surface finish, dimensional accuracy, mechanical performance, and structural integrity are four separate things, each requiring its own inspection method. A part can look great and still fail a load test if internal porosity wasn't caught.
Those inspection realities also shape when lost wax casting is the wrong process fit.
When to Look Elsewhere
Lost wax casting tends to be inefficient when:
- Production volume is high enough that die casting's reusable tooling pays off faster
- Parts are very large or geometrically simple, where sand casting is more economical
- Features are extremely tight and better suited to direct machining
- Tooling and shell lead time outweigh the geometric benefit
Quick Decision Checklist
Before committing to lost wax casting, weigh:
- Geometry complexity and overall part size
- Alloy requirements
- Production quantity
- Tolerance and surface finish needs
- Tooling budget
- Service load expectations
- Inspection requirements
- Delivery schedule
- Required secondary operations
If your project leans simple, oversized, or extremely high-volume, compare these alternatives against your requirements:
- Sand casting
- Permanent mold casting
- Die casting
- Machining from billet
- Forging
- Additive manufacturing
No single method wins universally—match the process to geometry, volume, alloy, and inspection needs.
Conclusion
Aluminum lost wax casting uses a sacrificial wax pattern and ceramic shell to create detailed components with near-net-shape advantages. But the payoff depends on getting every stage right: design allowances, alloy selection, pattern and gating accuracy, shell quality, melt control, solidification, and finishing.
Choose this process based on the complete manufacturing requirements, not just the appeal of intricate geometry. Talk with a qualified manufacturing or sourcing partner such as Krupa Services before finalizing a design, especially if volume, tolerance, or budget constraints are still in flux.
Frequently Asked Questions
What metals can you use for lost wax casting?
Lost wax casting works with aluminum, steel, stainless steel, bronze, brass, copper, and other compatible alloys. The pattern wax, ceramic shell, and furnace setup all need to match the selected metal's properties.
Is lost wax casting still used?
Yes. The global investment casting market is projected to reach $26.12 billion by 2030. Growth is driven by demand for detailed, lightweight parts where complex geometry or lower-volume flexibility beats high-volume tooling economics.
What is the best wax for lost wax casting?
There's no single best wax. The right choice depends on your pattern-making method (injection, carving, or patching), plus rigidity and burnout requirements. Follow the wax supplier's specifications for your application.
How does aluminum lost wax casting work?
A wax pattern gets coated in ceramic slurry to build a shell. After dewaxing, molten aluminum fills the cavity, cools, and the shell is broken away before finishing and inspection.
What are the advantages of aluminum lost wax casting?
Benefits include lightweight parts, complex geometry, near-net-shape production, and strong surface quality. It fits low-to-medium volume applications well, though tooling and volume limits still apply.
When should you choose lost wax casting over die casting?
Choose lost wax casting when complex geometry, alloy flexibility, prototyping, or lower production volumes matter more than die casting's rapid cycle times and reusable tooling economics.
