Introduction
Hot chamber die casting is a high-pressure casting method where the injection system stays integrated with, or submerged in, the molten-metal holding furnace. That integration is what separates it from every other die casting configuration.
This guide is for US product designers, engineers, OEMs, procurement teams, and manufacturers evaluating metal components for automotive, electronics, industrial machinery, renewable energy, and construction applications.
Choose the wrong process and you lock in problems with material compatibility, part quality, worker safety, and tooling cost—often for the life of the program.
Hot chamber die casting comes up often in sourcing and design reviews. Confusion still centers on which alloys actually work, how the process differs from cold chamber casting, and what part sizes it can realistically handle.
This article breaks down the machine, the full process flow, where it fits, common defects, and how to know when it's the wrong tool for the job.
Key Takeaways
- Hot chamber machines integrate furnace and injection for faster, more repeatable cycles than manual pouring.
- Low-melting alloys like zinc, tin, and lead fit best; aluminum generally needs cold chamber equipment.
- Six stages define the process: chamber filling, injection, pressure holding, cooling, die opening, and ejection.
- Die design, melt cleanliness, and machine maintenance drive quality more than any single setting.
- Production volume, part geometry, and alloy choice should decide if this process or an alternative fits.
What Is Hot Chamber Die Casting?
Hot chamber die casting is a permanent-mold process that injects molten metal into a reusable steel die under controlled pressure. The metal solidifies into a finished part, and the same cycle repeats shot after shot with minimal manual intervention.
The goal is straightforward: produce detailed, dimensionally consistent parts at production scale, without heavy secondary finishing. "Hot chamber" describes the relationship between the furnace, the metal reservoir, and the injection system, not that the die itself sits inside the molten bath.
Die casting is the umbrella term. Hot chamber and cold chamber are two different ways of getting molten metal into the injection chamber. Understanding that distinction clears up a lot of confusion for teams comparing quotes or specs.
Core Machine Components
A hot chamber machine relies on a handful of coordinated parts:
- Furnace or crucible – keeps the alloy molten and ready
- Gooseneck or submerged shot sleeve – carries metal into the injection path and endures constant thermal exposure
- Plunger and nozzle – move and direct molten metal into the die cavity
- Die, cooling channels, vents, and ejector pins – form, cool, vent, and eject the finished casting
Because the injection mechanism sits directly in the molten bath, there's no need to ladle metal into a separate shot chamber. The NADCA FAQ notes that this integration is what allows hot chamber production rates to run faster than processes requiring a separate metal transfer step. Fewer manual transfer steps means fewer opportunities for inconsistency between shots.
Where Hot Chamber Die Casting Is Applied (and Why It's Chosen)
Manufacturers reach for hot chamber die casting for a specific set of production reasons: continuous access to molten metal, automated and repeatable injection, and the ability to reproduce fine surface detail without ladling metal by hand between cycles.
Dynacast notes faster processing, tighter tolerances, thin-wall capability, and reduced material waste as practical benefits of hot chamber casting. That mix suits high-volume runs of small, intricate parts.
Buyers in automotive, electronics, appliances, and industrial machinery typically need the same outcomes: consistent surface finish, dimensional repeatability, and reliable delivery schedules.
Typical Applications
- Zinc hardware, including fasteners, brackets, and decorative trim
- Electrical and electronic housings
- Appliance components and internal mechanisms
- Automotive fittings, latches, and small structural pieces
- Locks and other precision small-part hardware
Those use cases still have to clear a cost and process check. Actual savings depend on alloy pricing, tooling design, scrap rates, and machine utilization. This is an operational and economic decision, not a regulatory mandate. Safety, environmental, and quality compliance still rest on the specific facility, alloy, and equipment in use.
Krupa Services works across automotive, industrial machinery, renewable energy, construction, agriculture, electronics, home appliances, mining, and oil and gas. Not every component in those industries is automatically a fit for hot chamber casting.
If you're weighing a drawing, an alloy requirement, or an annual volume target, Krupa Services can help evaluate the manufacturing route, provide DFM input, and coordinate sourcing across its supplier network.
How the Hot Chamber Die Casting Process Works

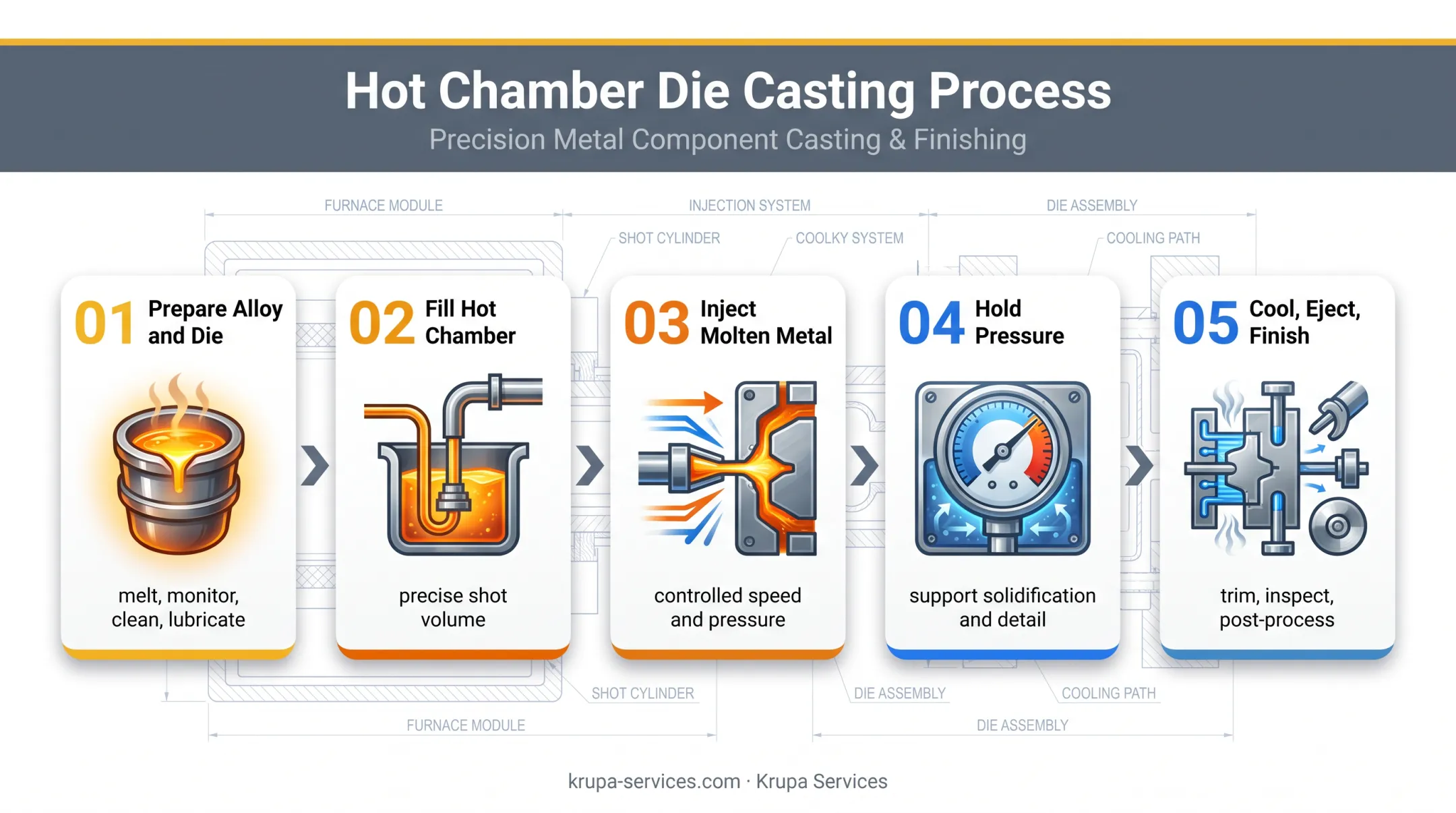

Hot chamber die casting follows a closed production cycle. Each shot moves through five controlled stages:
- Prepare the alloy and die
- Fill the hot chamber
- Inject molten metal into the die
- Hold pressure while the casting solidifies
- Cool, open, eject, and finish the part
Part quality depends on how well melt temperature, die temperature, injection speed, fill time, holding pressure, cooling balance, and venting work together.
Step 1: Prepare the Alloy and Die
The chosen alloy gets charged, melted, and monitored to stay within its approved operating range. Meanwhile, the die is cleaned, lubricated, clamped, and brought to a stable working temperature.
Alloy cleanliness and moisture control set the baseline for the rest of the shot. Dross buildup, contaminated stock, or inconsistent die prep drive porosity, surface defects, and dimensional drift later — and raise molten-metal handling risk.
Step 2: Fill the Hot Chamber
The plunger rises, opening an intake port so molten metal flows from the integrated furnace into the chamber. Shot volume still has to stay precise.
Too little metal underfills the cavity. Too much creates excess overflow and inconsistent part weight from shot to shot.
Step 3: Inject Molten Metal Into the Die
Once the chamber is filled, the plunger reverses direction, sealing the port and driving metal through the gooseneck, nozzle, sprue, runners, and gates into the die cavity — all at a controlled speed and pressure.
Fill pattern management is critical here. Poor control leads to:
- Trapped air pockets
- Cold shuts from premature solidification
- Turbulent flow that introduces porosity
- Incomplete cavity filling
Step 4: Hold Pressure While the Casting Solidifies
Pressure doesn't stop once the cavity fills. Holding pressure feeds solidification shrinkage, supports fine detail reproduction, and improves how tightly the metal contacts the die surface.
The right pressure and hold time depend on alloy behavior, wall thickness, part geometry, gate design, and what the machine can deliver.
Step 5: Cool, Open, Eject, and Finish the Part
Cooling channels pull heat out of the die until the casting is rigid enough to survive ejection. Cooling balance drives cycle time, warpage, and dimensional consistency. Uneven cooling is a common reason parts drift out of tolerance over a production run.
Once cooled, ejector pins release the part. Runners, gates, and flash typically get trimmed before inspection. Depending on the application, post-processing might include:
- Deburring and surface finishing
- Machining for tighter tolerances
- Heat treatment, where the alloy supports it
- Assembly and quality documentation
Key Factors That Affect Quality (and Common Defects to Watch For)

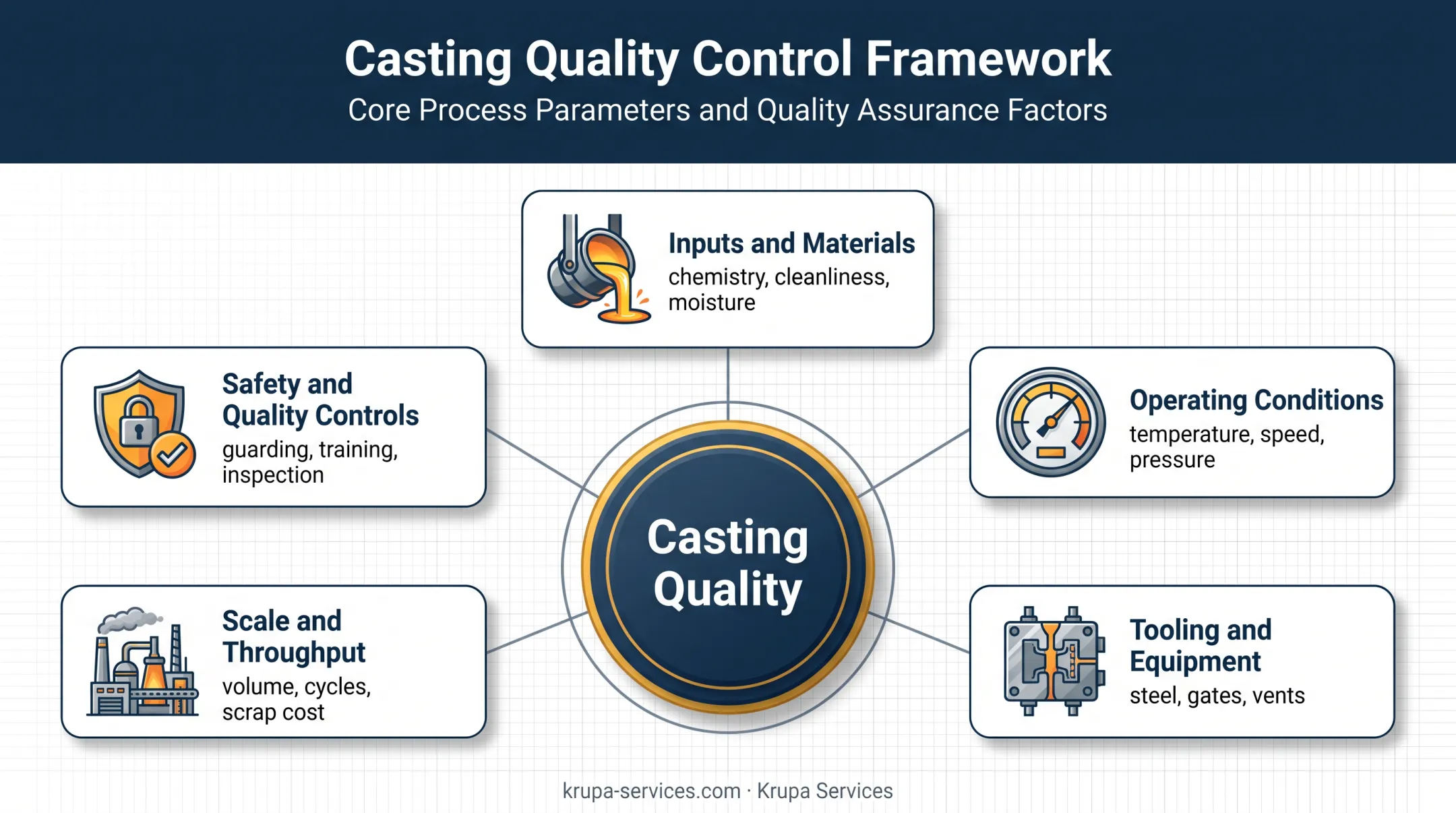

Quality in hot chamber die casting comes from coordinated control across five areas, not any single dial on the machine.
Inputs and Materials
- Alloy chemistry, melt cleanliness, and moisture content
- Recycled-content controls and fluidity behavior
- Compatibility with the specific hot chamber system in use
Operating Conditions
- Melt and die temperature stability
- Injection speed and pressure profile
- Cooling rate and lubrication consistency
Tooling and Equipment
- Die steel quality, cavity design, and parting line placement
- Gate, runner, and vent layout
- Gooseneck condition, nozzle alignment, and plunger wear
Scale and Throughput
- Annual volume and number of cavities
- Cycle consistency and changeover frequency
- Tooling and scrap cost impact across total volume
Safety and Quality Controls
- Guarding, ventilation, and molten-metal handling procedures
- Operator training and preventive maintenance schedules
- Dimensional inspection and porosity testing when the application requires it
DFM review should happen before tooling gets cut. Design choices that prevent defects early include:
- Uniform wall sections
- Proper draft angles
- Adequate radii
- Minimized undercuts
These details reduce scrap risk and avoid costly tooling rework after steel is cut.
Where Defects Actually Come From
| Defect | Typical Cause |
|---|---|
| Flash | Insufficient clamping tonnage, die wear, or misalignment |
| Gas porosity | Trapped air, poor venting, turbulent fill |
| Cold shuts | Premature solidification, low melt or die temperature |
| Incomplete fill | Insufficient flow, restricted gates, thin walls |
| Soldering | Die-material erosion from localized high temperature |
| Dimensional variation | Thermal instability, die wear over production runs |
Three misconceptions cause the most trouble in practice:
- Hot chamber casting is not suitable for every metal; melt temperature and chemical attack on submerged components rule out many alloys
- High pressure alone does not guarantee quality without coordinated fill pattern, venting, and cooling
- A smooth surface finish says nothing about internal integrity
Some applications still need leak testing, density checks, or X-ray inspection regardless of how clean the part looks.
Industry specifications such as NADCA's Product Specification Standards for Die Castings cover tooling data, alloy properties, and tolerance guidance. No single certification fits every project, so map the standard to the part's functional and inspection requirements before production release.
When Hot Chamber Die Casting May Not Be the Right Fit
Hot chamber casting hits real limits when the alloy has a high melting point or chemically attacks submerged components. FRECH USA notes that aluminum and magnesium typically need cold chamber equipment because of how they interact with the injection system. Lower-melting alloys such as zinc, tin, and lead remain the natural fit.
Other practical limits include:
- Very large parts or thick sections that strain the injection system
- Internal soundness specs where porosity risk is unacceptable
- Low production volumes that cannot justify tooling investment
- Frequent design changes that make tooling amortization impractical

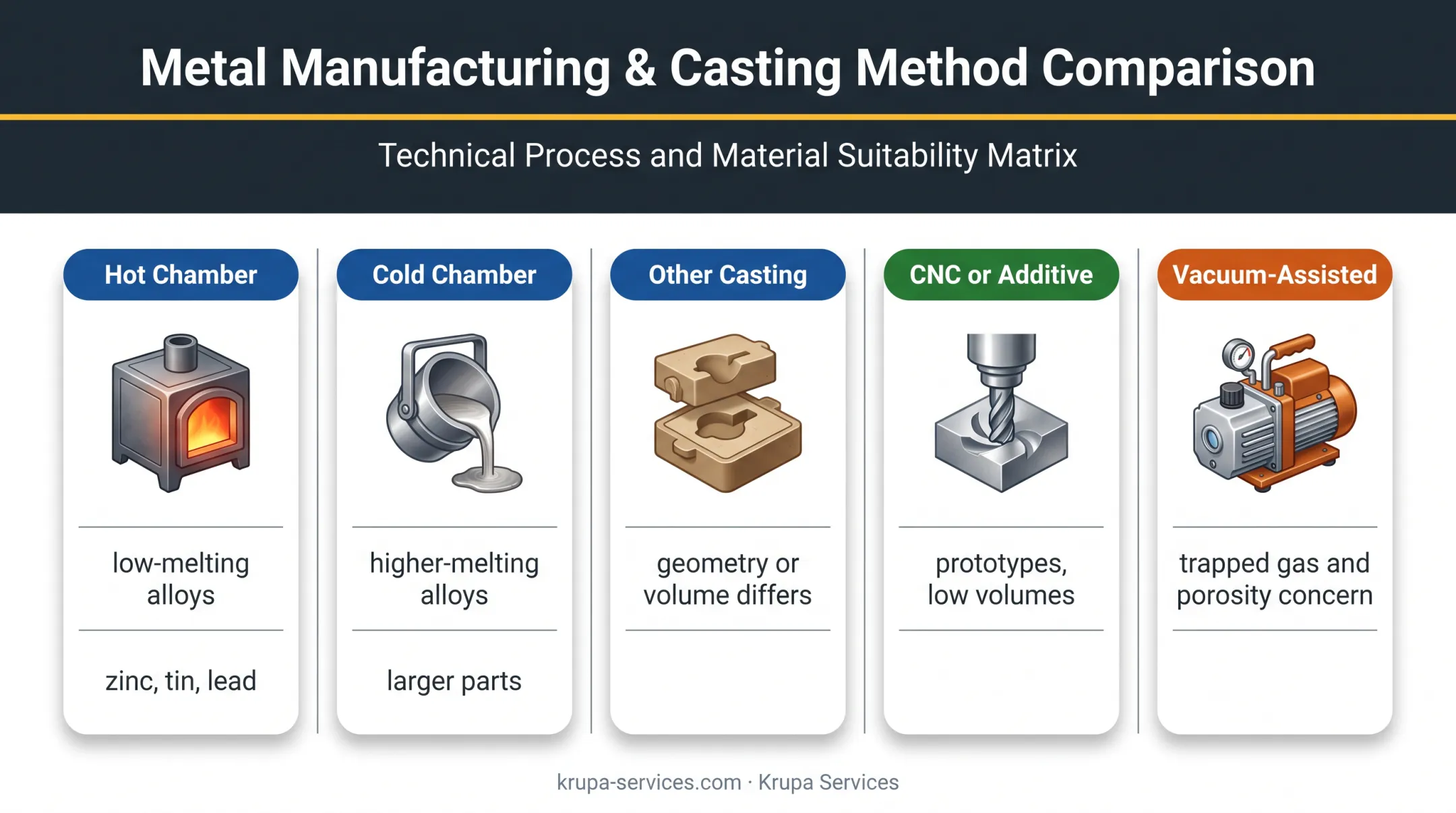

Alternative Processes to Consider
- Cold chamber die casting: better for higher-melting alloys and larger, structurally demanding parts
- Sand, investment, or permanent mold casting: useful when geometry or volume needs differ significantly
- CNC machining, fabrication, or additive methods: stronger fit for prototypes, low volumes, or one-off geometries
- Vacuum-assisted die casting: practical when trapped gas and porosity are the main concern
Quick Selection Checklist
Before committing to hot chamber tooling, confirm:
- Does the alloy's melting behavior fit hot chamber equipment?
- Do part size and wall thickness fall inside the process envelope?
- Is annual volume high enough to justify tooling cost?
- Do tolerance, surface, and internal quality needs match what the process reliably delivers?
- Does the supplier have the inspection capability the application requires?
Conclusion
Hot chamber die casting uses an integrated molten-metal and injection setup to produce repeatable, detailed parts efficiently, but only from alloys that suit the system—primarily zinc, tin, and lead. The result depends on getting alloy selection, DFM-oriented die design, and thermal control right together, not on any one variable in isolation.
The decision that matters is whether hot chamber casting beats cold chamber casting or another manufacturing route once you weigh material, geometry, volume, and total cost side by side.
When you need to make that call, Krupa Services can provide project-specific guidance, connect you with the right supplier for the alloy and volume you need, and help review the manufacturing route before tooling dollars are committed.
Frequently Asked Questions
What is hot chamber die casting and how does it work?
Hot chamber die casting keeps the injection system integrated with the molten-metal furnace. Metal fills the chamber, is injected under pressure into a steel die, solidifies under hold pressure, then cools and is ejected.
What is a die casting process?
Die casting injects molten metal into a reusable die under pressure to form a repeatable part. Hot chamber and cold chamber are the two main configurations, differing in how metal reaches the injection chamber.
What is the difference between hot and cold chamber die casting?
Hot chamber keeps the injection system submerged in the furnace, suited to low-melting alloys like zinc. Cold chamber uses a separate melting source, built for higher-melting alloys like aluminum and larger parts.
What is hot chamber die casting used for?
Hot chamber die casting is common for zinc hardware, electronics housings, appliance components, automotive fittings, and small industrial parts where high volume and fine detail both matter.
Which metal is most suitable for hot chamber die casting?
Zinc alloys, such as Zamak 3, are the most common choice thanks to their fluidity and low melting range, typically around 718–728°F. Suitability still depends on the machine and part requirements.
