Cable Tray Systems for Renewable Energy Facilities

Three commonly referenced cable tray types are ladder trays, perforated or ventilated trough trays, and solid-bottom trays. Ladder trays are widely used for heat dissipation and long cable runs, perforated trays provide support with ventilation, and solid-bottom trays offer added protection for sensitive wiring. The right choice depends on cable type, environmental exposure, load requirements, and maintenance access needs within the facility.

NEC requirements for cable tray support are addressed primarily in Article 392, but exact support spacing is not a single universal number for every installation. Support intervals must follow the tray manufacturer’s specifications, tray loading, span rating, and installation conditions. In practice, engineers also review cable weight, seismic or wind considerations, and facility design standards to ensure the tray system remains compliant and structurally sound.

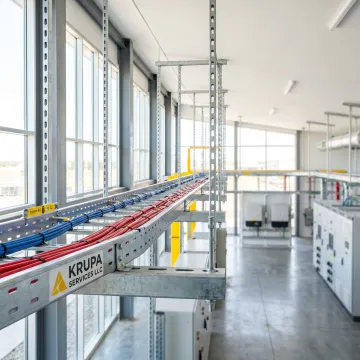

Cable tray systems help renewable energy facilities organize large volumes of power, control, and communication cables in a structured, accessible way. They simplify inspection, future expansion, and maintenance while reducing congestion compared with fully enclosed conduit-only layouts. In solar, wind, and hydropower environments, well-designed tray systems also support better cable protection, cleaner routing, and more efficient installation across equipment skids, inverter areas, and balance-of-plant infrastructure.

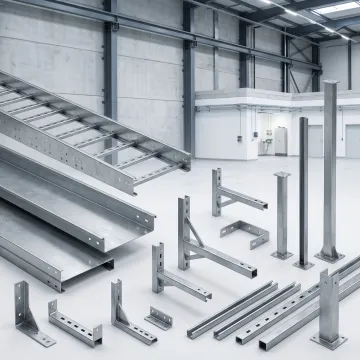

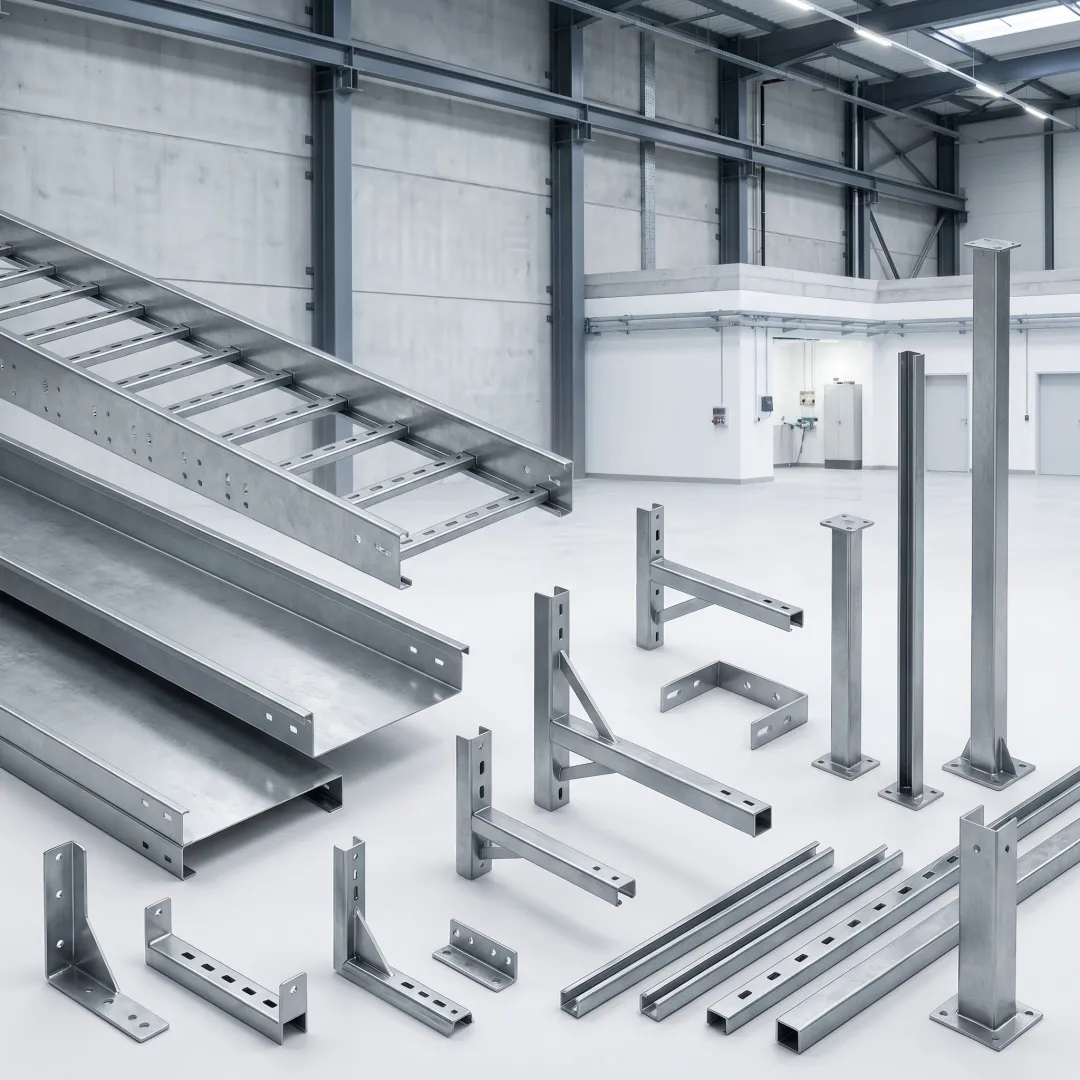

Cable tray systems are commonly manufactured from steel, aluminum, stainless steel, and sometimes coated or plated metals depending on the environment. Material selection depends on corrosion exposure, structural load, indoor or outdoor use, and project budget. Renewable energy facilities often prioritize durability, weight considerations, and long-term resistance to weather, moisture, or industrial contaminants when selecting tray components and support hardware.

Yes, cable tray components can be custom fabricated to meet project-specific dimensions, support conditions, routing changes, and mounting requirements. Custom work may include brackets, supports, splice components, covers, and specialty assemblies designed around equipment layouts or structural constraints. This is especially useful in renewable energy facilities where standardized parts may need adaptation for unique site configurations, cable densities, or integration with existing infrastructure.

Quality verification typically includes supplier qualification, dimensional checks, material review, process controls, and product qualification against project or industry requirements. Depending on the scope, teams may also perform audits, documentation review, and root cause analysis to address recurring issues. For industrial buyers, strong quality oversight helps reduce installation problems, improve consistency across batches, and support confidence in long-term field performance.

Strategic sourcing can reduce cable tray project costs by improving supplier selection, quote evaluation, contract terms, and manufacturing alignment before production begins. Cost savings often come from better procurement planning, consolidated purchasing, and selecting suppliers with the right capabilities for the required volume and quality level. Krupa Services notes that clients in sourcing engagements have achieved 9%-15% annualized savings in broader procurement programs.

Buyers should look for a partner with engineering understanding, fabrication capability, sourcing depth, and quality controls rather than a vendor focused only on price. Important factors include experience with industrial applications, supplier reliability, documentation discipline, responsiveness, and the ability to coordinate across design, manufacturing, and delivery. For renewable energy projects, consistency and accountability are especially important because delays can affect broader commissioning schedules.
